Headlight Dimmer Switch Circuit [09/2019 - 08/2020]: Wiring Diagram

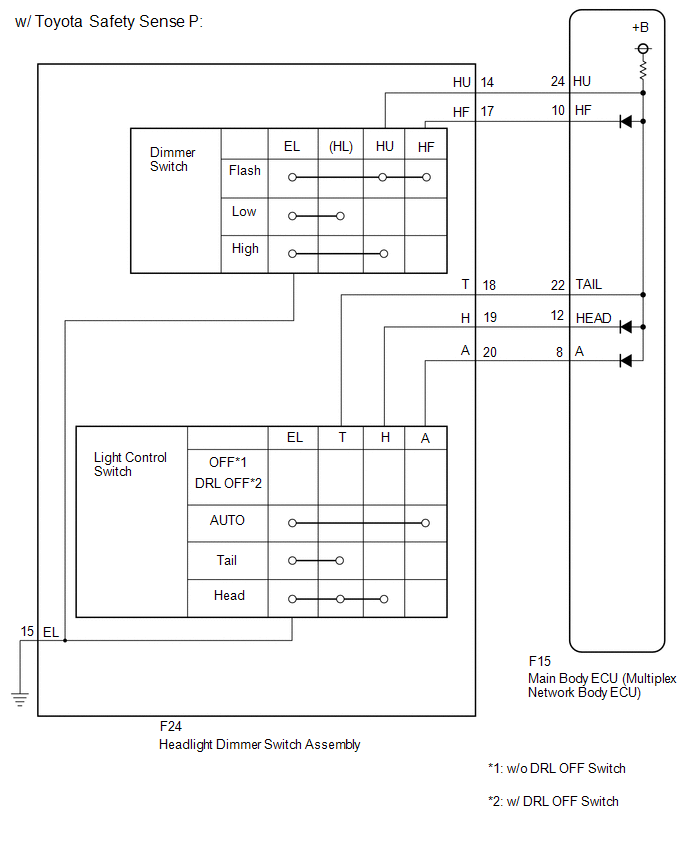

Fig 1: Headlight Dimmer Switch Circuit Diagram (1 Of 2)
GTY757330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

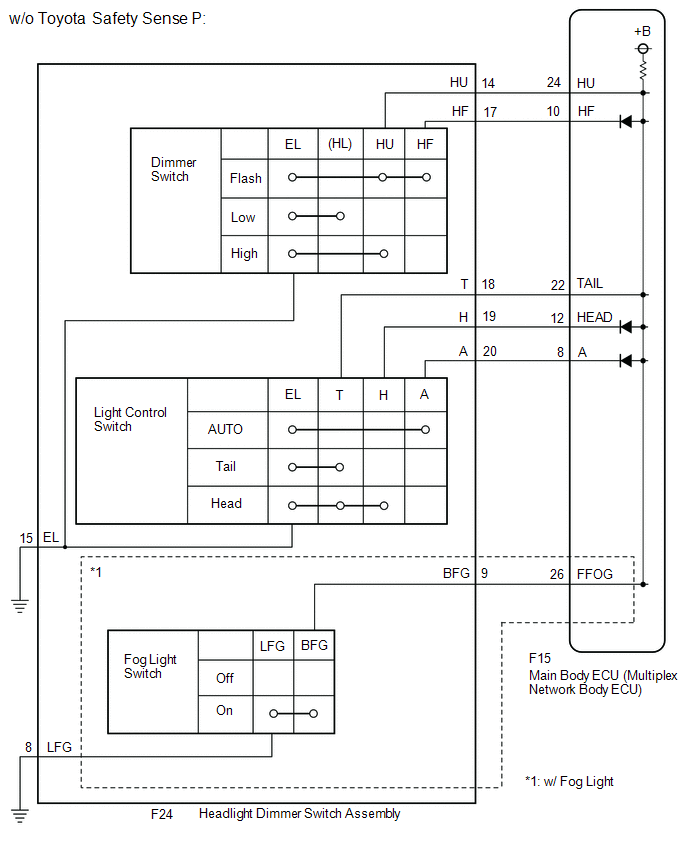

Fig 2: Headlight Dimmer Switch Circuit Diagram (2 Of 2)
GTY918132Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
