Headlight Dimmer Switch Circuit [08/2020 - 12/2021]: Wiring Diagram

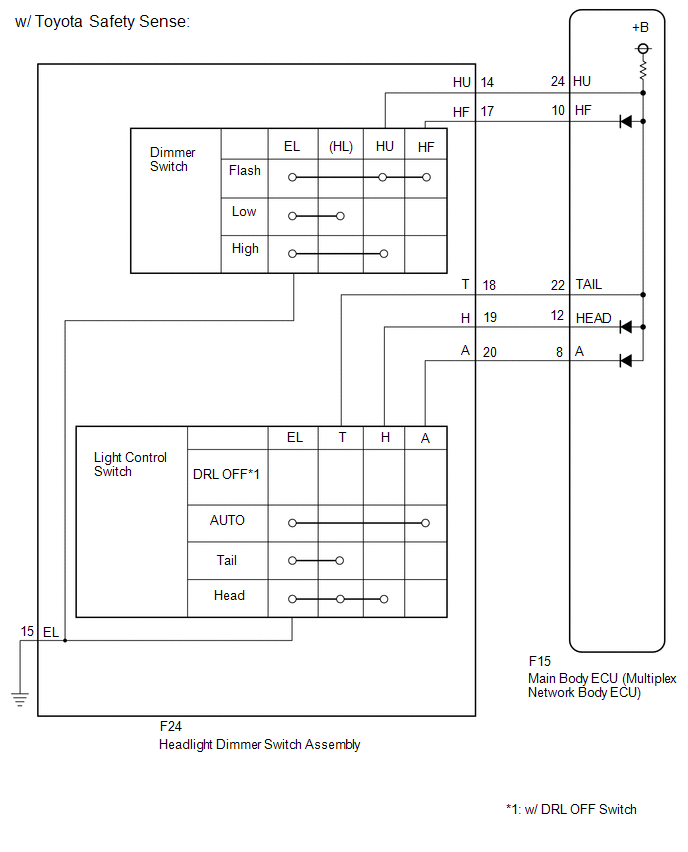

Fig 1: Headlight Dimmer Switch Circuit Diagram (1 Of 2)
GTY982350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

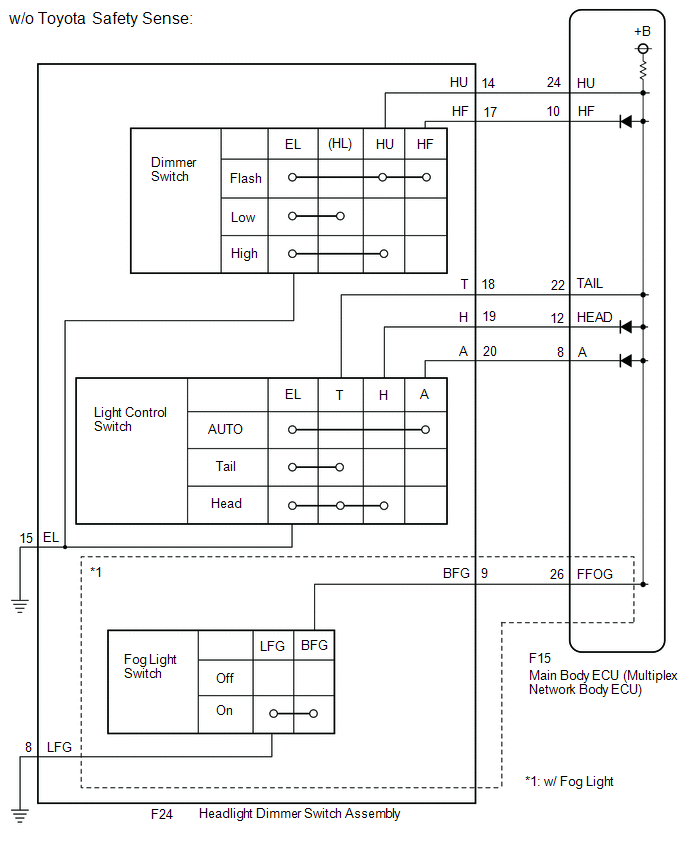

Fig 2: Headlight Dimmer Switch Circuit Diagram (2 Of 2)
GTY983741Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
