Front Fog Light Circuit [12/2021 - ]: Wiring Diagram

  1. for TMMT Made

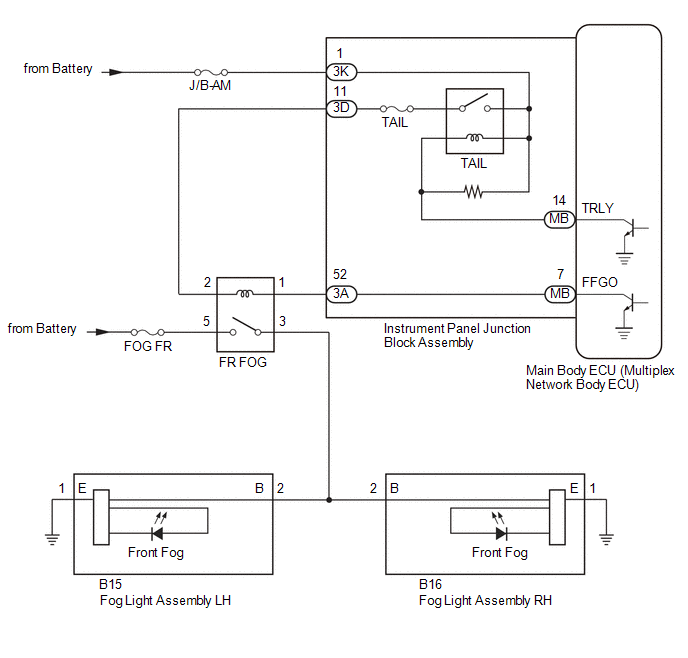

    Fig 1: Front Fog Light Circuit Diagram (For TMMT Made)
    GTY1040593Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. for TMC Made
    Fig 2: Front Fog Light Circuit Diagram (For TMC Made)
    GTY1040592Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
