Front Fog Light Circuit [09/2019 - 08/2020]: Wiring Diagram

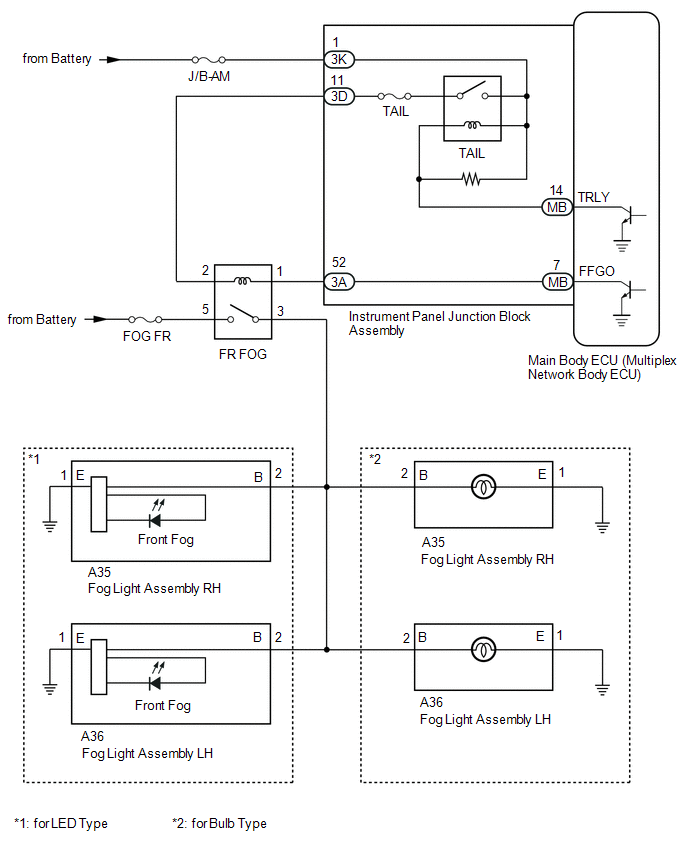

Fig 1: Front Fog Light Circuit Diagram

GTY750728

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
