Front Fog Light Circuit [08/2020 - 12/2021]: Wiring Diagram

for TMMT Made

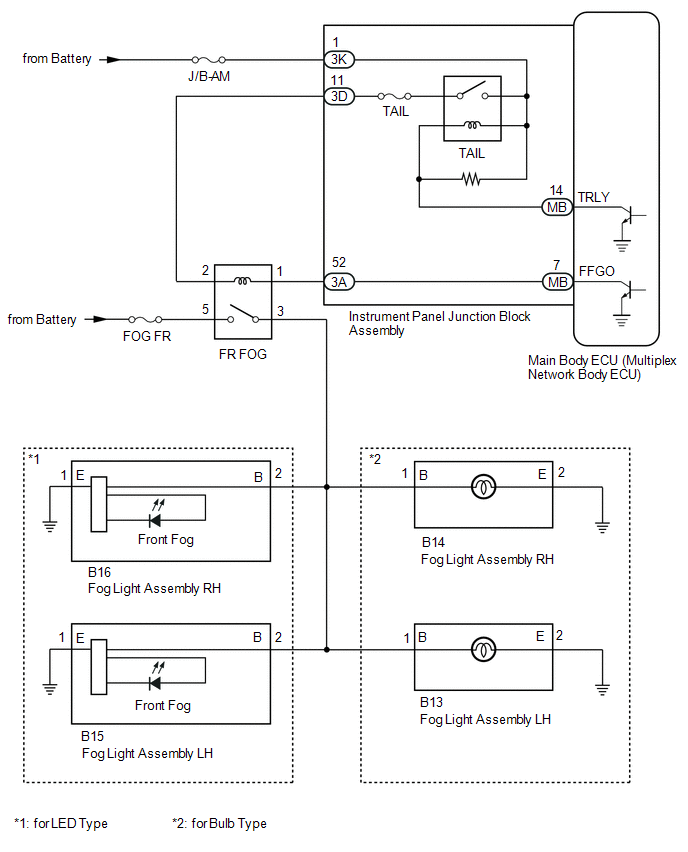

Fig 1: Front Fog Light Circuit Diagram - For TMMT Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for TMC Made

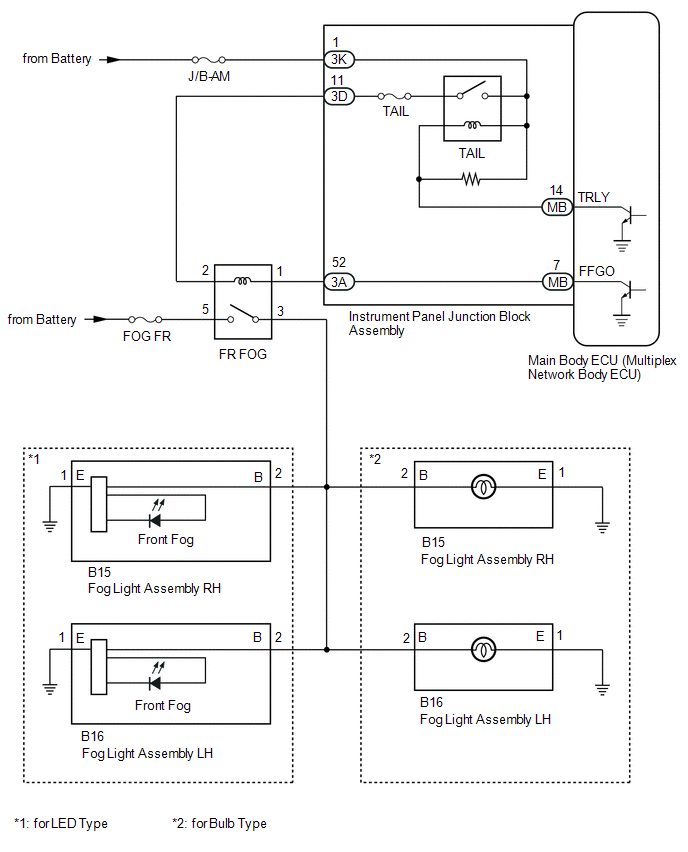

Fig 2: Front Fog Light Circuit Diagram - For TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
