Clearance Light/Daytime Running Light Circuit [09/2019 - ]: Wiring Diagram

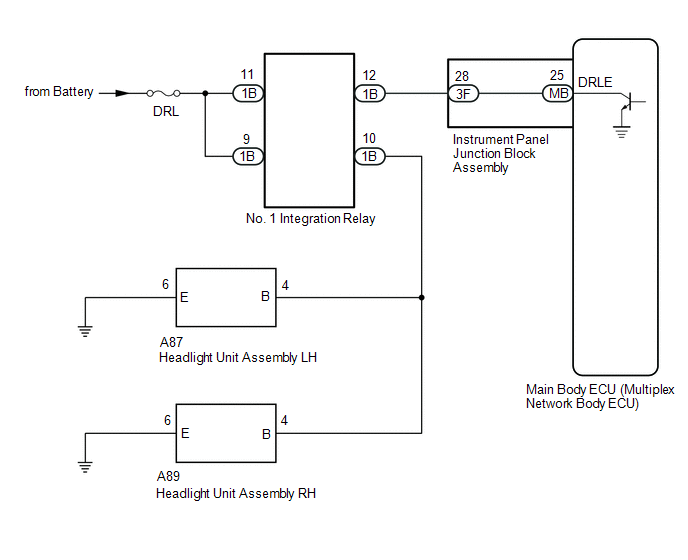

Fig 1: Clearance Light/Daytime Running Light Circuit Diagram

GTY860989

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
