Removal [02/2017 - 10/2017]: Procedure

  1. REMOVE REAR SUSPENSION MEMBER SUB-ASSEMBLY

    Refer to REMOVAL [02/2017 - 10/2017]

  2. REMOVE REAR UPPER CONTROL ARM ASSEMBLY LH

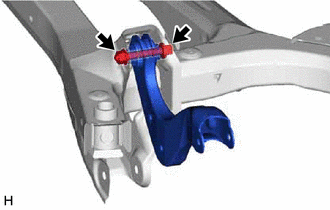

    1. Remove the bolt, nut and rear upper control arm assembly LH from the rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY574461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE REAR UPPER CONTROL ARM ASSEMBLY RH

    HINT:

    Perform the same procedure as for the LH side.
