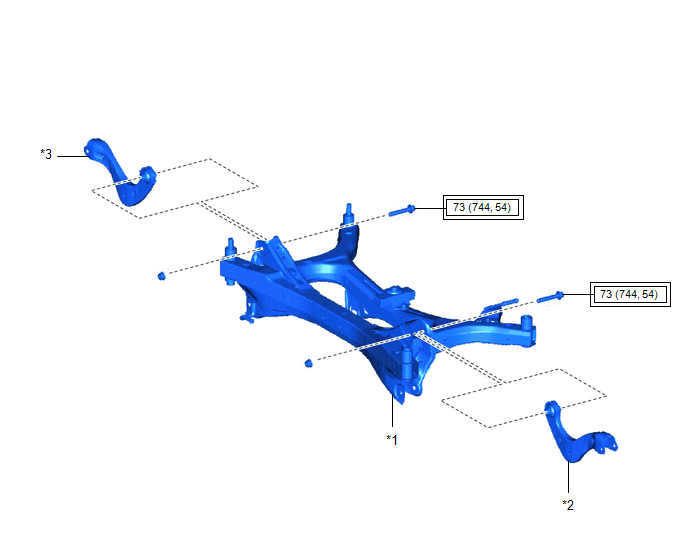

Components [02/2017 - ]
| Callout | Description | Callout | Description |
| *1 | REAR SUSPENSION MEMBER SUB-ASSEMBLY | *2 | REAR UPPER CONTROL ARM ASSEMBLY LH |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY RH | - | - |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | - | - |
