Removal [02/2017 - ]: Procedure

Refer to REMOVAL [02/2017 - 05/2018] , or refer to REMOVAL [05/2018 - ]

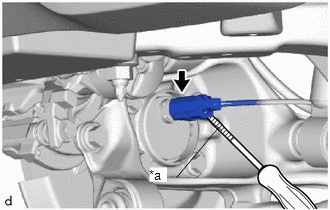

1. Using a screwdriver with its tip wrapped in protective tape, disconnect the No. 2 parking brake wire connector from the rear axle hub and bearing assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   NOTE:

   Be careful not to damage the rear axle hub and bearing assembly and connector cover.

2. Disengage the clamp.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

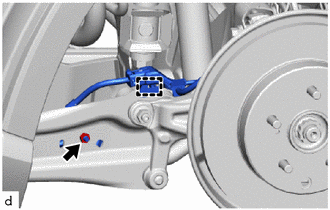

3. Remove the nut to separate the No. 2 parking brake wire assembly from the rear trailing arm assembly.

See step  2 [02/2017 - 09/2019] See step  2 [09/2019 - ]

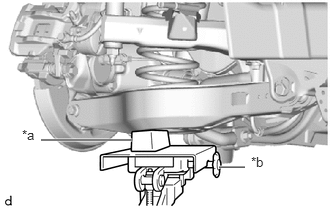

1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Transmission Jack

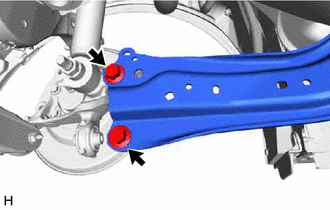

2. Remove the 2 bolts to separate the rear trailing arm assembly from the rear axle carrier sub-assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

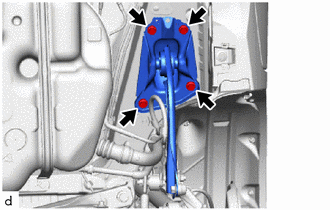

3. Remove the 4 bolts and rear trailing arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Secure the rear trailing arm assembly in a vise using aluminum plates.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Do not overtighten the vise.

2. Disengage the 3 claws to remove the NO. 1 rear suspension support cover.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the bolt, nut and rear suspension arm bracket from the rear trailing arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   NOTE:

   Because the bolt has its own stopper, do not turn the bolt. Loosen the nut with the bolt secured.
