Installation [02/2017 - ]: Procedure

1. Temporarily install the rear suspension arm bracket to the rear trailing arm assembly with the bolt and nut.
   NOTE:

   • Because the bolt has its own stopper, do not turn the bolt. Tighten the nut with the bolt secured.
   • Insert the bolt from the inside of the vehicle.

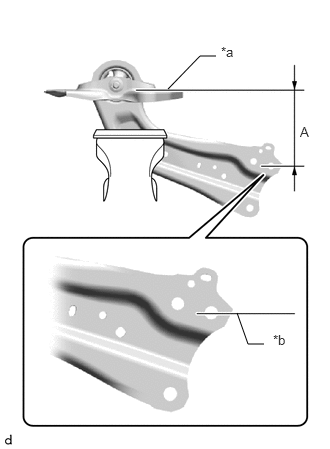

2. Position the rear trailing arm assembly as shown in the illustration.

   Reference Length (A)

   150 mm (5.91 in.)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Upper Surface of Rear Suspension Arm Bracket
   *b	Edge of Rear Trailing Arm Assembly

3. Fully tighten the nut.

   Torque: 120 N*m (1224 kgf*cm, 89 ft.*lbf)

   NOTE:

   Because the bolt has its own stopper, do not turn the bolt. Tighten the nut with the bolt secured.

1. Engage the 3 claws to install the NO. 1 rear suspension support cover.

1. Using a transmission jack and a wooden block, support the rear No. 2 suspension arm assembly.
   NOTE:

   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.
2. Install the rear trailing arm assembly to the vehicle with the 4 bolts.

   Torque: 90 N*m (918 kgf*cm, 66 ft.*lbf)

3. Install the rear trailing arm assembly to the rear axle carrier sub-assembly with the 2 bolts.

   Torque: 135 N*m (1377 kgf*cm, 100 ft.*lbf)

1. Engage the clamp.
2. Install the No. 2 parking brake wire assembly to the rear trailing arm assembly with the nut.

   Torque: 15.5 N*m (158 kgf*cm, 11 ft.*lbf)

3. Connect the No. 2 parking brake wire connector to the rear axle hub and bearing assembly.

See step  5 [02/2017 - 09/2019] See step  5 [09/2019 - ]

Refer to INSTALLATION [02/2017 - 05/2018] , or refer to INSTALLATION [05/2018 - ]

Refer to ADJUSTMENT [02/2017 - 10/2017] , or refer to ADJUSTMENT [10/2017 - 12/2017] , or refer to ADJUSTMENT [12/2017 - 09/2019] , or refer to ADJUSTMENT [09/2019 - 12/2021] , or refer to ADJUSTMENT [12/2021 - ]
