Components [02/2017 - 09/2019]

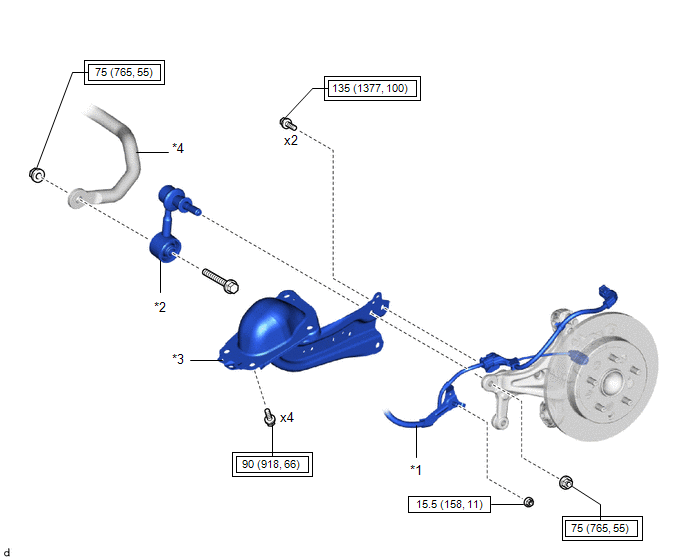

Fig 1: Rear Trailing Arm Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	NO. 2 PARKING BRAKE WIRE ASSEMBLY	*2	REAR STABILIZER LINK ASSEMBLY
*3	REAR TRAILING ARM ASSEMBLY	*4	REAR STABILIZER BAR
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)		Nm (kgfcm, ft.*lbf): Specified torque

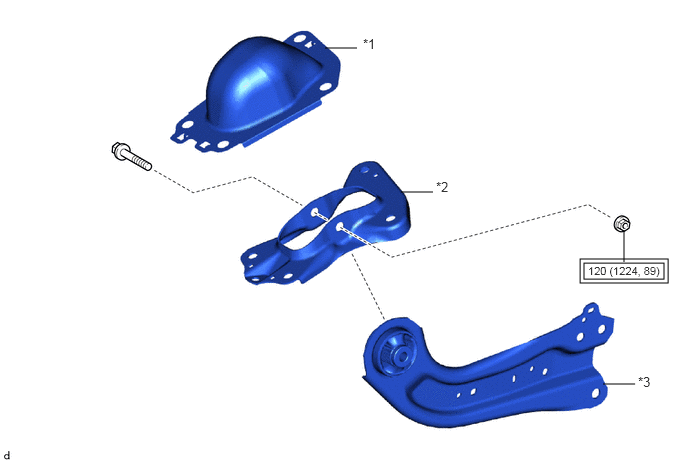

Fig 2: Rear Trailing Arm Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	NO. 1 REAR SUSPENSION SUPPORT COVER	*2	REAR SUSPENSION ARM BRACKET
*3	REAR TRAILING ARM ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-
