Components [02/2017 - 09/2019]

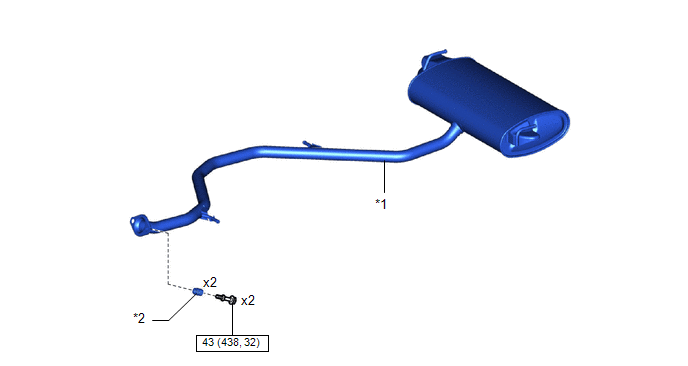

Fig 1: Rear Suspension Member Replacement Components With Torque Specifications (1 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	TAIL EXHAUST PIPE ASSEMBLY	*2	COMPRESSION SPRING
	Nm (kgfcm, ft.*lbf): Specified torque	-	-

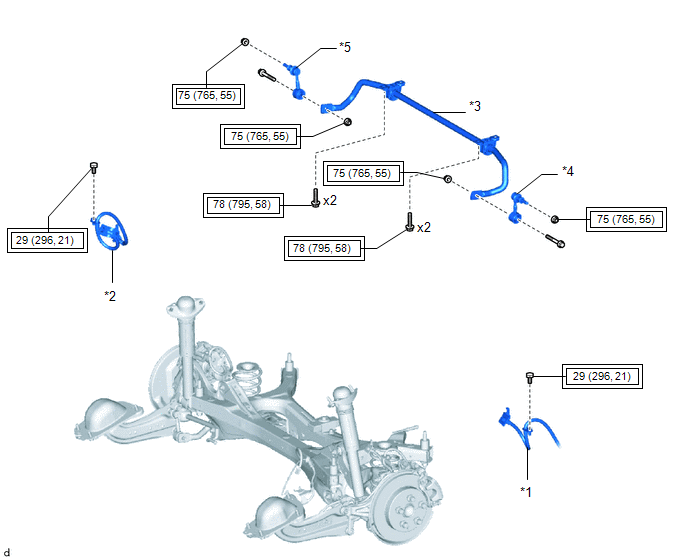

Fig 2: Rear Suspension Member Replacement Components With Torque Specifications (2 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR FLEXIBLE HOSE LH	*2	REAR FLEXIBLE HOSE RH
*3	REAR STABILIZER BAR	*4	REAR STABILIZER LINK ASSEMBLY LH
*5	REAR STABILIZER LINK ASSEMBLY RH	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-

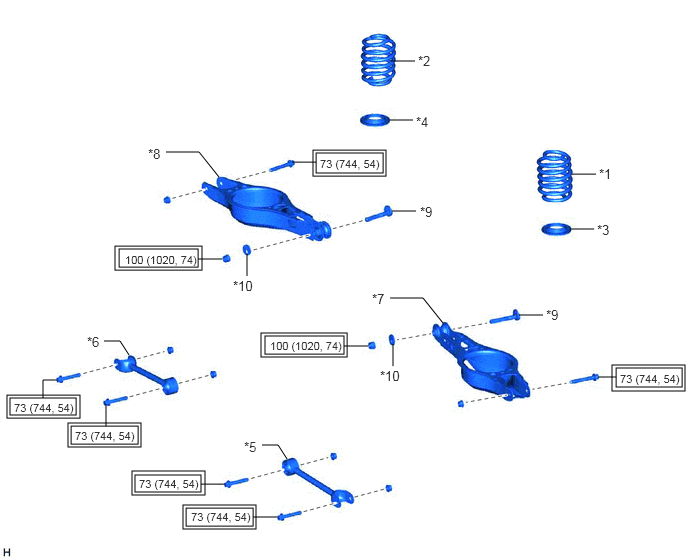

Fig 3: Rear Suspension Member Replacement Components With Torque Specifications (3 Of 5)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR COIL SPRING LH	*2	REAR COIL SPRING RH
*3	REAR LOWER COIL SPRING INSULATOR LH	*4	REAR LOWER COIL SPRING INSULATOR RH
*5	REAR NO. 1 SUSPENSION ARM ASSEMBLY LH	*6	REAR NO. 1 SUSPENSION ARM ASSEMBLY RH
*7	REAR NO. 2 SUSPENSION ARM ASSEMBLY LH	*8	REAR NO. 2 SUSPENSION ARM ASSEMBLY RH
*9	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY	*10	NO. 2 CAMBER ADJUST CAM
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

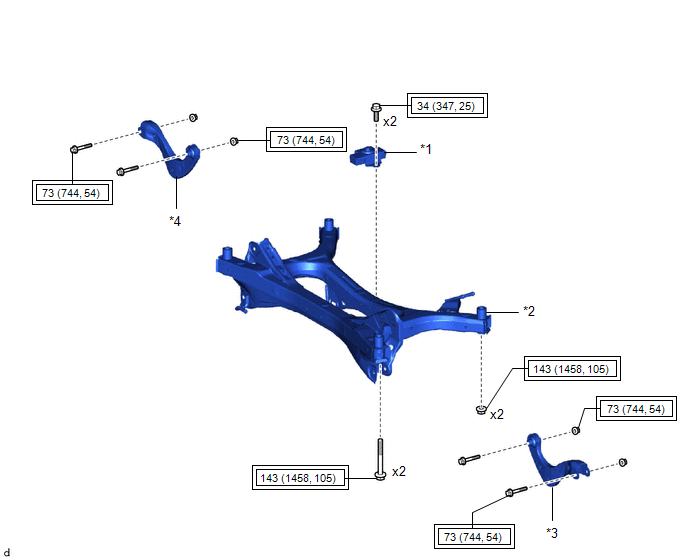

Fig 4: Rear Suspension Member Replacement Components With Torque Specifications (4 Of 5)

Callout	Description	Callout	Description
*1	REAR SUSPENSION MEMBER DAMPER	*2	REAR SUSPENSION MEMBER SUB-ASSEMBLY
*3	REAR UPPER CONTROL ARM ASSEMBLY LH	*4	REAR UPPER CONTROL ARM ASSEMBLY RH
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

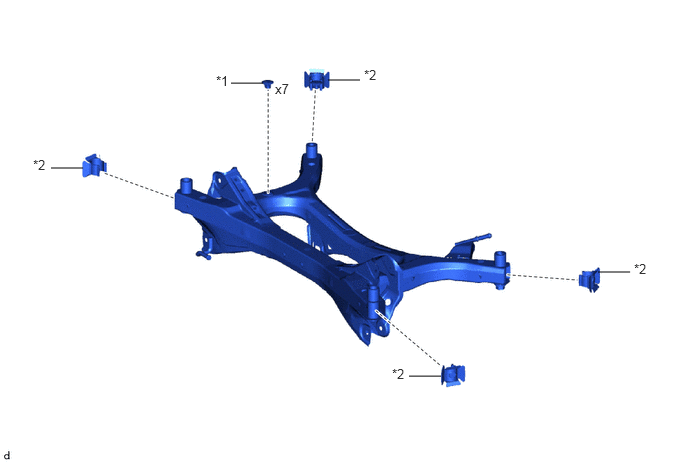

Fig 5: Rear Suspension Member Replacement Components (5 Of 5)

HOLE PLUG

REAR SUSPENSION MEMBER HOLE COVER
