Removal [02/2017 - 09/2019]: Procedure

REMOVE REAR WHEEL
Refer to REMOVAL [02/2017 - 05/2018] , or refer to REMOVAL [05/2018 - ]

REMOVE REAR STABILIZER LINK ASSEMBLY LH

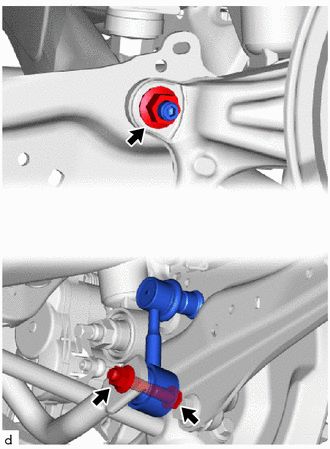

Loosen the nut (A) of the rear stabilizer link assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

Loosen the nut (B) of the rear stabilizer link assembly LH.
NOTE:
When loosing the nut, keep the bolt from rotating.

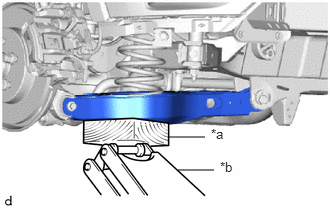

Using a jack and a wooden block, support the rear No. 2 suspension arm assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Wooden Block
*b	Jack

NOTE:

When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
Make sure to perform this operation with the vehicle kept as low as possible.

Remove the bolt, 2 nuts and rear stabilizer link assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

REMOVE REAR STABILIZER LINK ASSEMBLY RH
HINT:

Perform the same procedure as for the LH side.

REMOVE REAR STABILIZER BAR

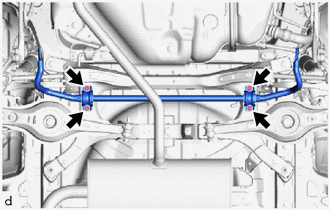

Remove the 4 bolts, rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings from the rear suspension member sub-assembly.

REMOVE REAR NO. 1 STABILIZER BAR BRACKET

Remove the 2 rear No. 1 stabilizer bar brackets from the 2 rear stabilizer bushings.

REMOVE REAR STABILIZER BUSHING

Remove the 2 rear stabilizer bushings from the rear stabilizer bar.
