Installation [02/2017 - 09/2019]: Procedure

1. Install the 2 rear stabilizer bushings to the rear stabilizer bar.
   NOTE:

   Be sure to install the rear stabilizer bushings so that each cutout faces the front of the vehicle.

1. Install the 2 rear No. 1 stabilizer bar brackets to the 2 rear stabilizer bushings.
   NOTE:

   Be sure to install the rear No. 1 stabilizer bar brackets so that each arrow mark faces the front of the vehicle.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Arrow Mark
   	Front of the Vehicle

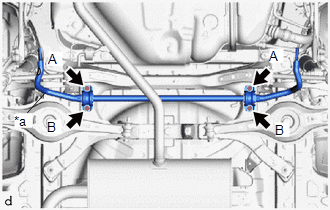

1. Install the rear stabilizer bar, 2 rear No. 1 stabilizer bar brackets and 2 rear stabilizer bushings to the rear suspension member sub-assembly with the 4 bolts.

   Torque: 78 N*m (795 kgf*cm, 58 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark

   NOTE:

   • Ensure that the identification mark faces the right side of the vehicle.
   • Temporarily tighten bolt (A) and then fully tighten the 2 bolts in the order of (B) and (A).

See step  4 [02/2017 - 10/2017] See step  4 [10/2017 - ]

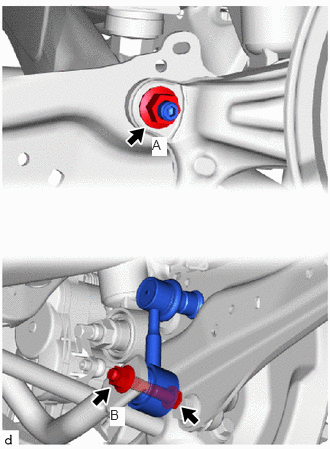

1. Install the rear stabilizer link assembly LH with the nut (A).

   Torque: 75 N*m (765 kgf*cm, 55 ft.*lbf)

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   HINT:

   If the ball joint turns together with the nut, use a 6 mm hexagon socket wrench to hold the stud bolt.

2. Install the rear stabilizer link assembly LH with the bolt and nut (B).

   Torque: 75 N*m (765 kgf*cm, 55 ft.*lbf)

   NOTE:

   When installing the nut, keep the bolt from rotating.

HINT:

Perform the same procedure as for the LH side.

Refer to INSTALLATION [02/2017 - 05/2018] , or refer to INSTALLATION [05/2018 - ]
