Components [02/2017 - 09/2019]

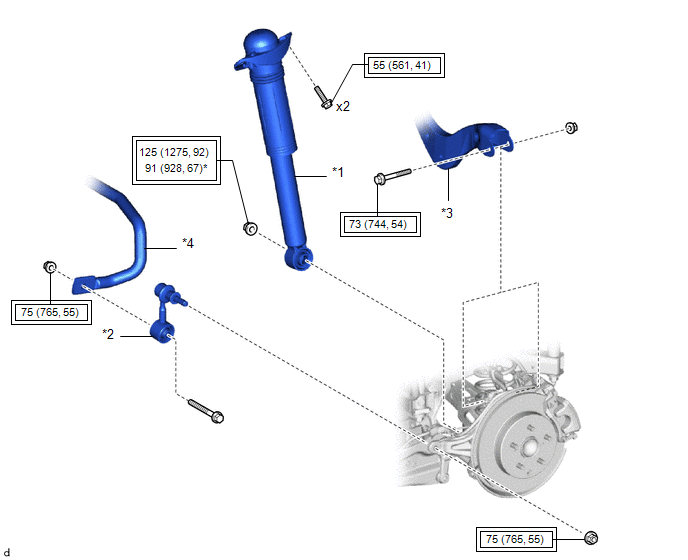

| Callout | Description | Callout | Description |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR STABILIZER LINK ASSEMBLY |
| *3 | REAR UPPER CONTROL ARM ASSEMBLY | *4 | REAR STABILIZER BAR |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with a ball joint lock nut wrench |

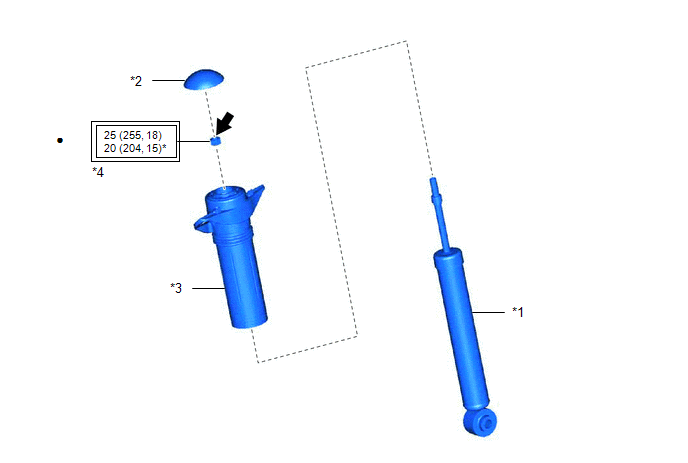

| Callout | Description | Callout | Description |
| *1 | REAR SHOCK ABSORBER ASSEMBLY | *2 | REAR SHOCK ABSORBER CAP |
| *3 | REAR SUSPENSION SUPPORT ASSEMBLY | *4 | REAR SUPPORT TO REAR SHOCK ABSORBER NUT |
| Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | * | For use with SST | |
| • | Non-reusable part | Adhesive 1324 | |
| * | Precoated part | - | - |
