Removal [02/2017 - 10/2017]: Procedure

  1. REMOVE REAR WHEEL

    Refer to REMOVAL [02/2017 - 05/2018]

  2. REMOVE REAR STABILIZER LINK ASSEMBLY

    See step  2

  3. REMOVE REAR COIL SPRING

    See step  2

  4. REMOVE REAR LOWER COIL SPRING INSULATOR

    See step  4

  5. REMOVE REAR NO. 2 SUSPENSION ARM ASSEMBLY

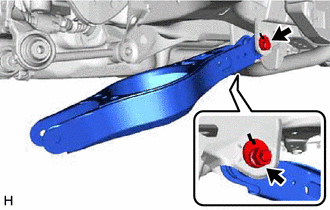

    1. Remove the nut, No. 2 camber adjust cam, rear suspension toe adjust cam sub-assembly and rear No. 2 suspension arm assembly.
      NOTE:

      Hold the rear suspension toe adjust cam sub-assembly while rotating the nut.

      GTY574491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE REAR NO. 1 SUSPENSION ARM ASSEMBLY

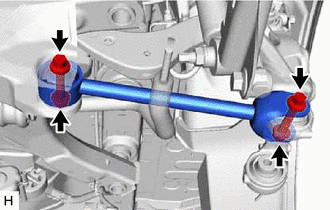

    1. Remove the 2 bolts, 2 nuts and rear No. 1 suspension arm assembly from the rear axle carrier sub-assembly and rear suspension member sub-assembly.
      NOTE:

      Because the nut has its own stopper, do not turn the nut. Loosen the bolt with the nut secured.

      GTY609386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
