Components [02/2017 - 09/2019]

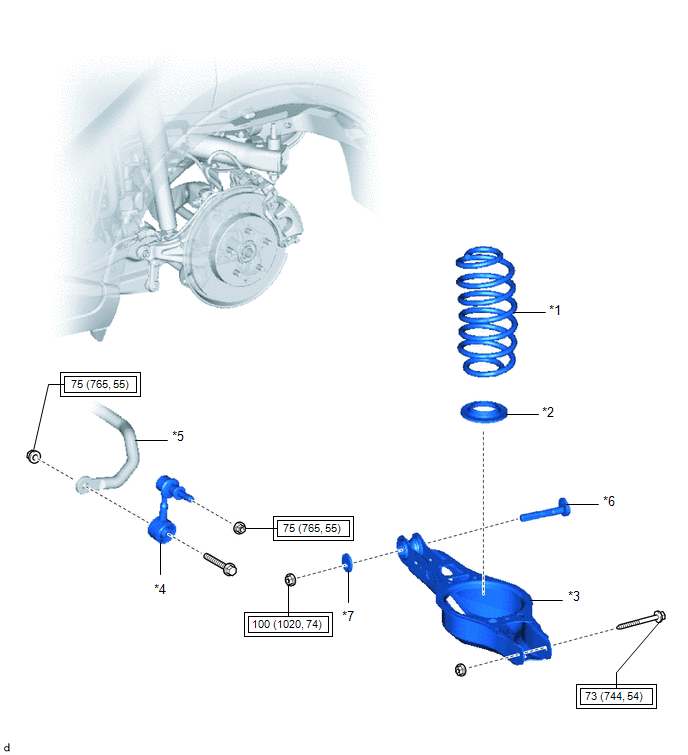

Fig 1: Rear Lower Arm Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	REAR COIL SPRING	*2	REAR LOWER COIL SPRING INSULATOR
*3	REAR NO. 2 SUSPENSION ARM ASSEMBLY	*4	REAR STABILIZER LINK ASSEMBLY
*5	REAR STABILIZER BAR	*6	REAR SUSPENSION TOE ADJUST CAM SUB-ASSEMBLY
*7	NO. 2 CAMBER ADJUST CAM	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-

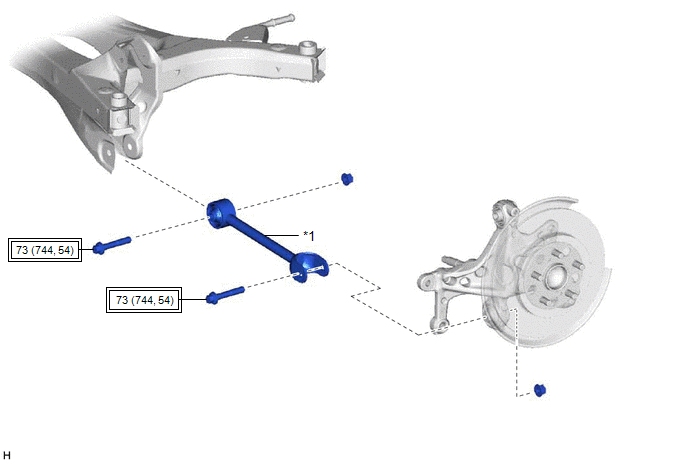

Fig 2: Rear Lower Arm Replacement Components With Torque Specifications (2 Of 2)

Callout	Description	Callout	Description
*1	REAR NO. 1 SUSPENSION ARM ASSEMBLY	-	-
	Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : Nm (kgfcm, ft.*lbf)	-	-
