Installation [10/2017 - ]: Procedure

1. Install the rear upper coil spring insulator to the vehicle.

1. Install the rear lower coil spring insulator to the rear No. 2 suspension arm assembly.

1. Set the rear coil spring to the rear No. 2 suspension arm assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Identification Mark
   *b	30° or less
   	Inner Side of the Vehicle

   NOTE:

   • Set the rear coil spring so that its lower end is within the range shown in the illustration.
   • Set the rear coil spring so that the identification mark is positioned as shown in the illustration.
2. Using a jack and wooden block, slowly jack up the rear No. 2 suspension arm assembly and then install the rear No. 2 suspension arm assembly to the rear axle carrier sub-assembly with the bolt and nut.
   WARNING:

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   • Do not raise the jack up too high.
   • The vehicle could fall, resulting in a serious accident.
   NOTE:

   • Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.
   • When jacking up the rear No. 2 suspension arm assembly, be sure to jack it up slowly.
   • Make sure to perform this operation with the vehicle kept as low as possible.
   • Insert the bolt with the threaded end facing the front of the vehicle.

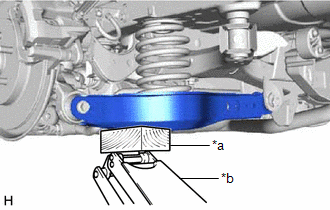

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Wooden Block
   *b	Jack

See step  4

1. Install the rear No. 2 suspension arm assembly (rear axle carrier sub-assembly side) with the bolt.

   Torque: 73 N*m (744 kgf*cm, 54 ft.*lbf)

   NOTE:

   Because the nut has its own stopper, do not turn the nut. Tighten the bolt with the nut secured.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Refer to INSTALLATION [10/2017 - ]

Refer to INSTALLATION [02/2017 - 05/2018] , or refer to INSTALLATION [05/2018 - ]

1. Install the rear No. 2 suspension arm assembly (rear suspension member sub-assembly side) with the nut.

   See step  8

Refer to ADJUSTMENT [10/2017 - 12/2017] , or refer to ADJUSTMENT [12/2017 - 09/2019] , or refer to ADJUSTMENT [09/2019 - 12/2021] , or refer to ADJUSTMENT [12/2021 - ]

Refer to INITIALIZATION [10/2017 - 09/2019] , or refer to INITIALIZATION [09/2019 - 08/2020] , or refer to INITIALIZATION [08/2020 - ]
