Components [02/2017 - 10/2017]

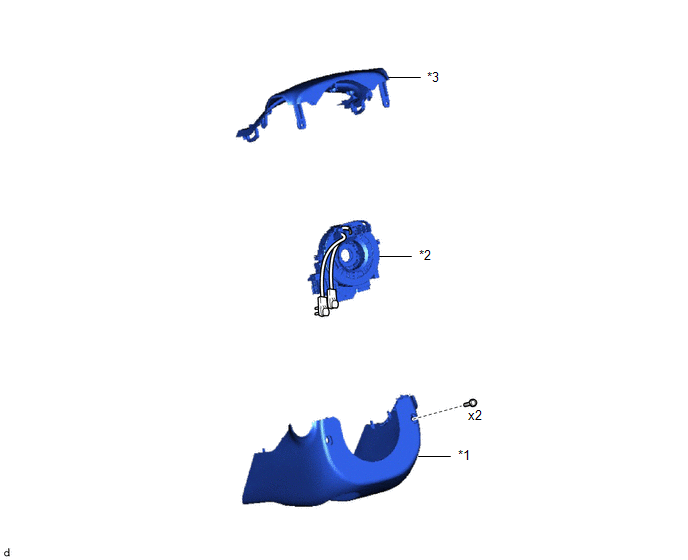

Fig 1: Spiral Cable Replacement Components (1 Of 2)
GTY765413Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 LOWER STEERING COLUMN COVER SUB-ASSEMBLY *2 SPIRAL CABLE WITH SENSOR SUB-ASSEMBLY
*3 UPPER STEERING COLUMN COVER - -

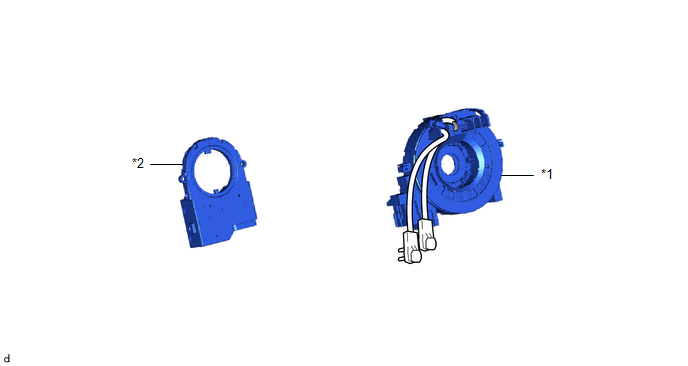

Fig 2: Spiral Cable Replacement Components (2 Of 2)
GTY767244Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 SPIRAL CABLE SUB-ASSEMBLY *2 STEERING SENSOR
