Headlight Dimmer Switch Circuit [10/2017 - 09/2019]: Wiring Diagram

WARNING: This page is about a different car, the 2019 Toyota C-HR and 2018 Toyota C-HR. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Headlight Dimmer Switch Circuit Diagram (1 Of 2)
GTY757330Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

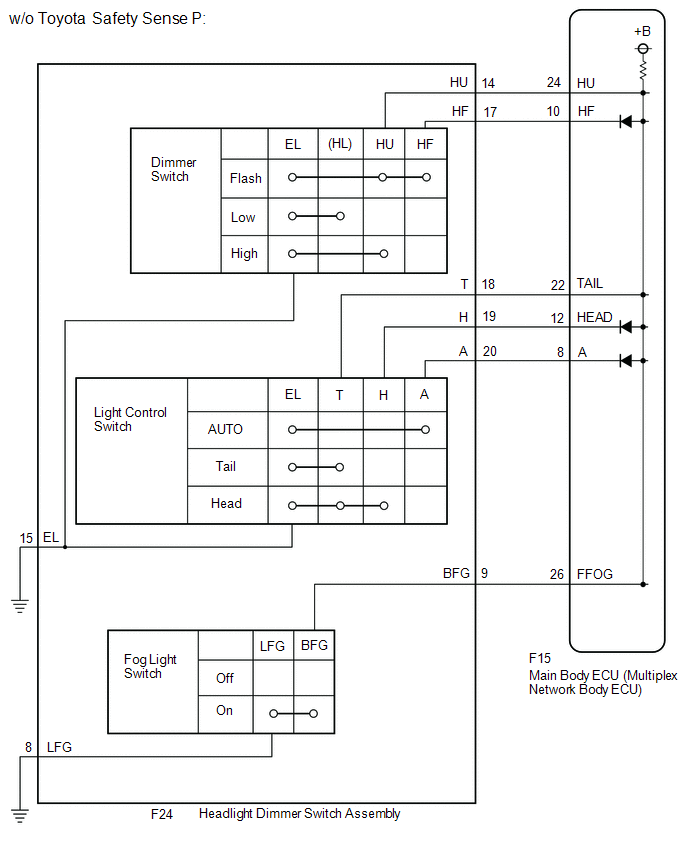

Fig 2: Headlight Dimmer Switch Circuit Diagram (2 Of 2)
GTY742522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
