Daytime Running Light Relay Circuit [02/2017 - 09/2019]: Wiring Diagram

WARNING: This page is about a different car, the 2019 Toyota C-HR and 2018 Toyota C-HR. However, it is still accessible from the selected car via links, so may be relevant.

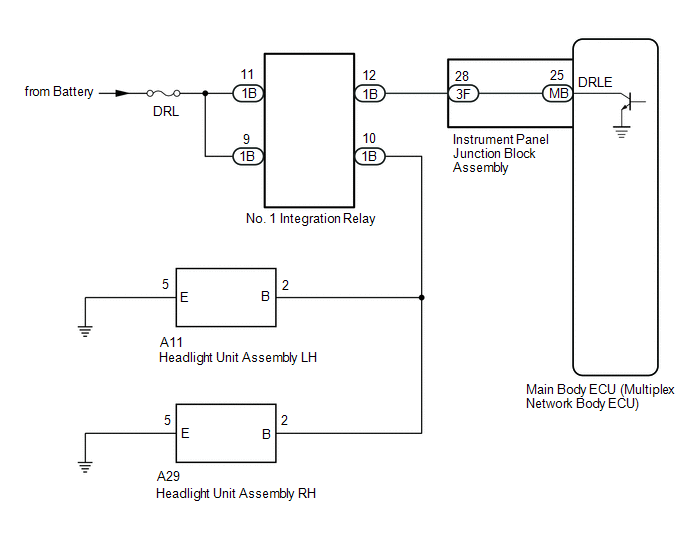

Fig 1: Daytime Running Light Relay Circuit Diagram
GTY746790Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
