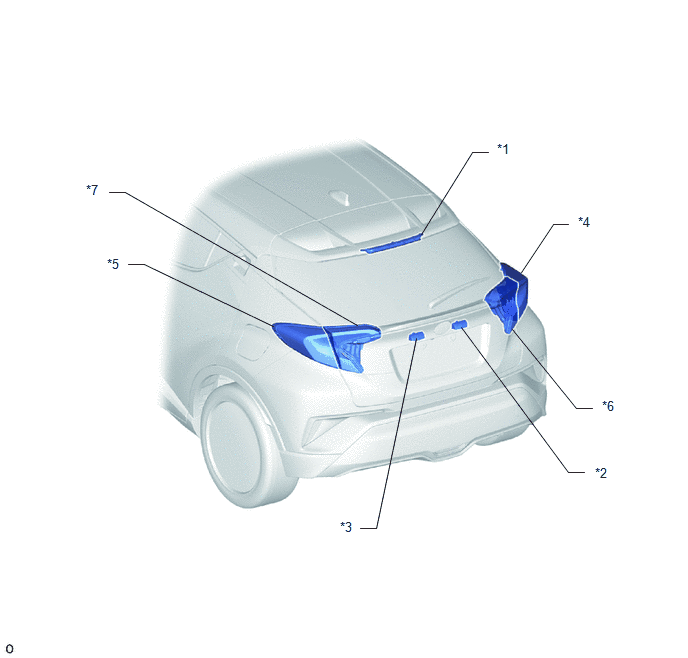

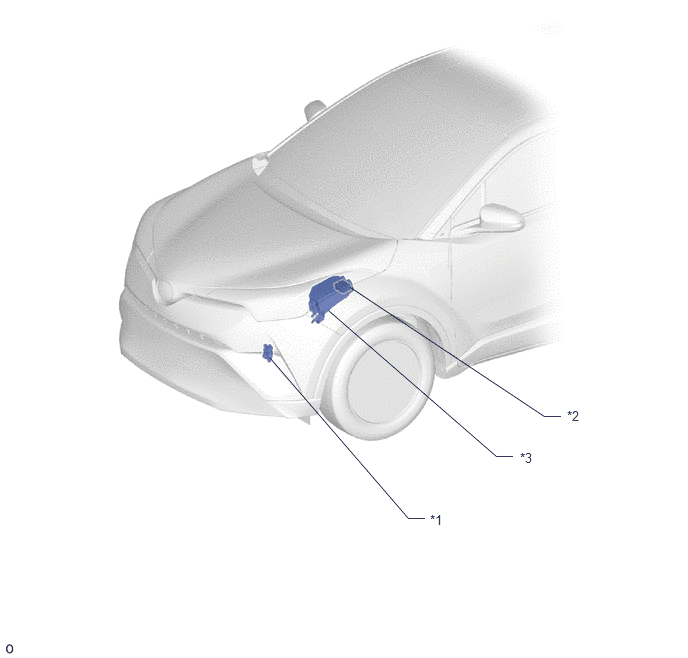

Parts Location [10/2017 - 09/2019]: Illustration
WARNING: This page is about a different car, the 2019 Toyota C-HR and 2018 Toyota C-HR. However, it is still accessible from the selected car via links, so may be relevant.

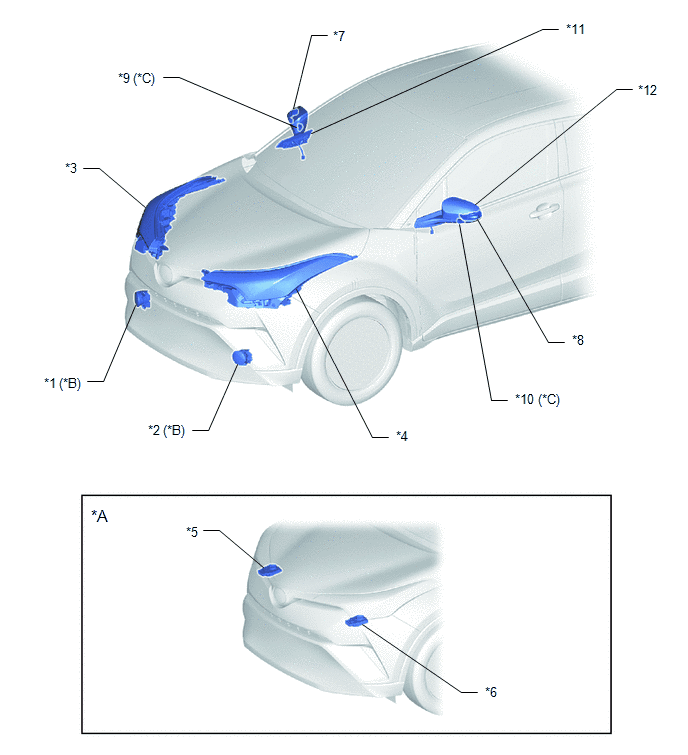

| *A | for LED Headlight | *B | w/ Fog Light |
| *C | w/ Door Mirror Foot Light | - | - |
| *1 | FOG LIGHT ASSEMBLY RH | *2 | FOG LIGHT ASSEMBLY LH |
| *3 | HEADLIGHT UNIT ASSEMBLY RH | *4 | HEADLIGHT UNIT ASSEMBLY LH |
| *5 | HEADLIGHT ECU SUB-ASSEMBLY RH | *6 | HEADLIGHT ECU SUB-ASSEMBLY LH |
| *7 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *8 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *9 | DOOR MIRROR FOOT LIGHT RH | *10 | DOOR MIRROR FOOT LIGHT LH |
| *11 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *12 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *A | for Halogen Headlight | - | - |
| *1 | PARK/NEUTRAL POSITION SWITCH | *2 | NO. 1 INTEGRATION RELAY - H-LP RH RELAY - H-LP LH RELAY |
| *3 | P-CON RELAY | *4 | NO. 1 ENGINE ROOM RELAY BLOCK - H-LP RH FUSE - H-LP LH FUSE |
| *5 | H-LP SHADE FUSE | *6 | DRL FUSE |
| *7 | H-LP SHADE RELAY | - | - |

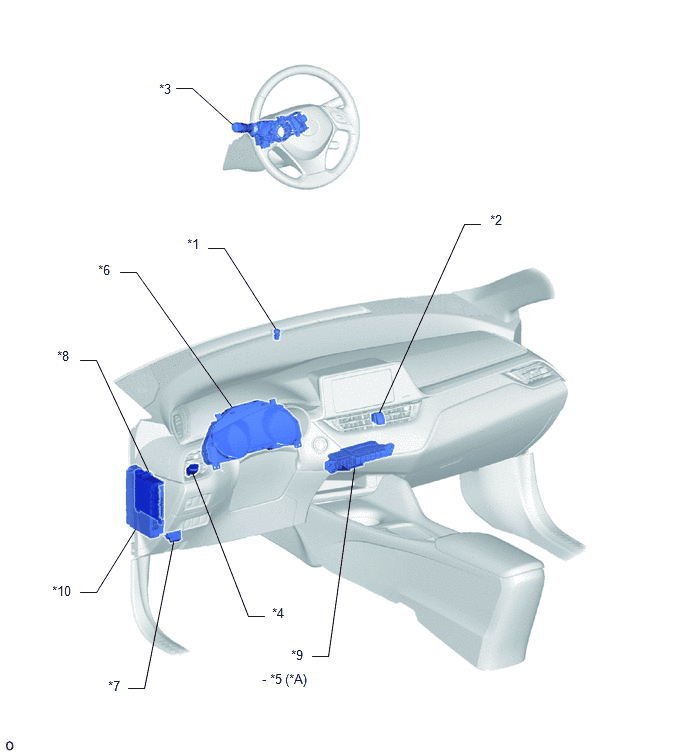

| *A | w/ Fog Light | - | - |
| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | FR FOG RELAY | *6 | COMBINATION METER ASSEMBLY |
| *7 | DLC3 | *8 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *9 | NO. 9 RELAY BLOCK ASSEMBLY | *10 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC RELAY - IG1-NO. 1 RELAY - TAIL RELAY - ECU-DCC NO. 2 FUSE - ECU ACC FUSE - TAIL FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG1 NO. 3 FUSE - METER-IG2 FUSE - HAZ FUSE - STOP FUSE - BKUP LP FUSE - BKUP LP RELAY |
