Parts Location [02/2017 - 10/2017]: Illustration
WARNING: This page is about a different car, the 2019 Toyota C-HR and 2018 Toyota C-HR. However, it is still accessible from the selected car via links, so may be relevant.

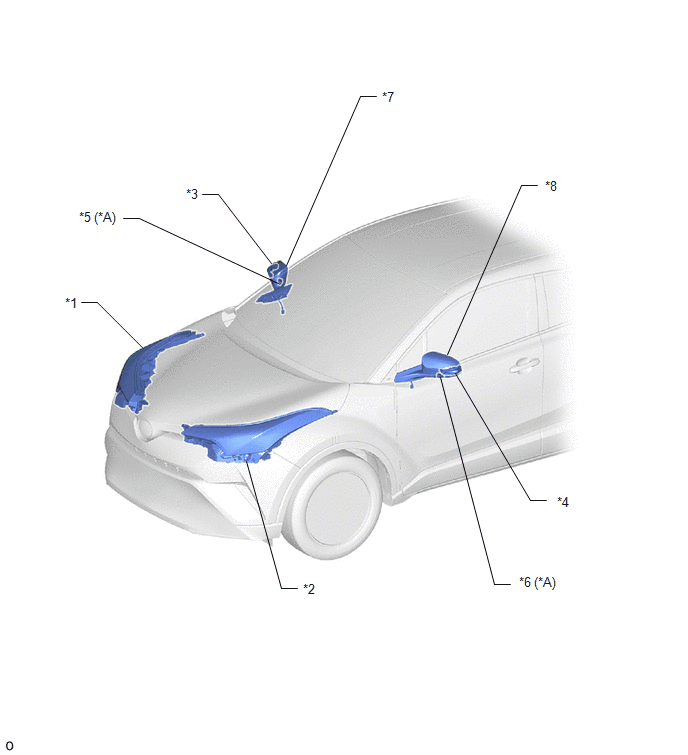

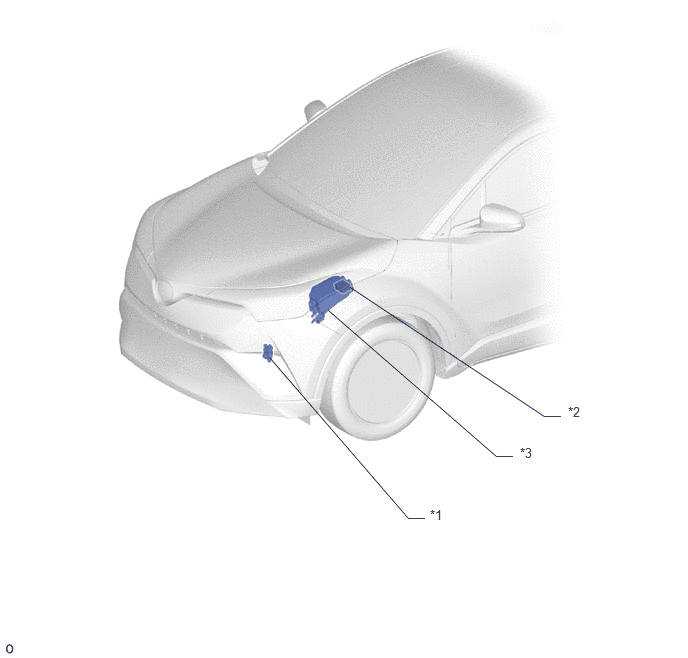

| *A | w/ Door Mirror Foot Light | - | - |
| *1 | HEADLIGHT UNIT ASSEMBLY RH | *2 | HEADLIGHT UNIT ASSEMBLY LH |
| *3 | SIDE TURN SIGNAL LIGHT ASSEMBLY RH | *4 | SIDE TURN SIGNAL LIGHT ASSEMBLY LH |
| *5 | DOOR MIRROR FOOT LIGHT RH | *6 | DOOR MIRROR FOOT LIGHT LH |
| *7 | OUTER REAR VIEW MIRROR ASSEMBLY RH | *8 | OUTER REAR VIEW MIRROR ASSEMBLY LH |
| *1 | PARK/NEUTRAL POSITION SWITCH | *2 | NO. 1 INTEGRATION RELAY - H-LP RH RELAY - H-LP LH RELAY - P-CON RELAY |
| *3 | NO. 1 ENGINE ROOM RELAY BLOCK - H-LP RH FUSE - H-LP LH FUSE - H-LP SHADE FUSE - DRL FUSE - H-LP SHADE RELAY |
- | - |

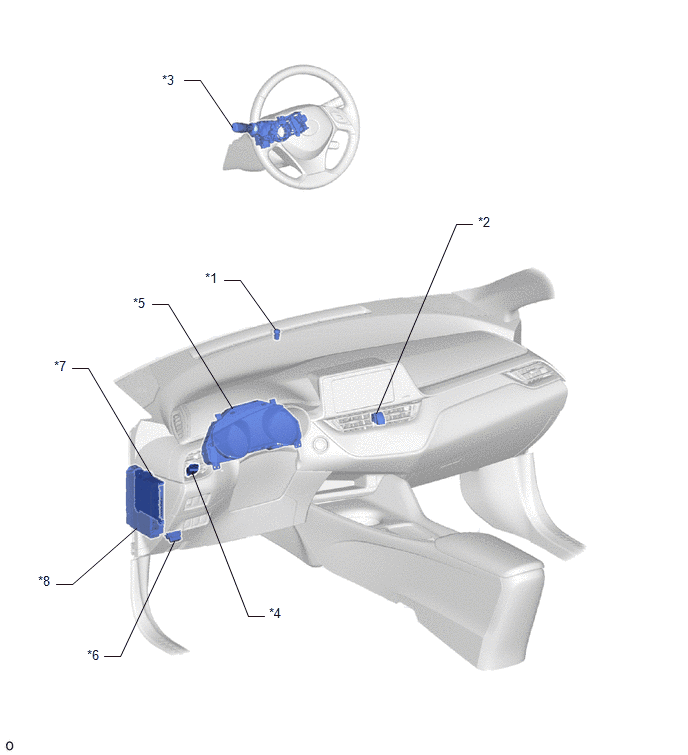

| *1 | AUTOMATIC LIGHT CONTROL SENSOR | *2 | HAZARD WARNING SIGNAL SWITCH ASSEMBLY |
| *3 | HEADLIGHT DIMMER SWITCH ASSEMBLY | *4 | STOP LIGHT SWITCH ASSEMBLY |
| *5 | COMBINATION METER ASSEMBLY | *6 | DLC3 |
| *7 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - ACC RELAY - IG1-NO. 1 RELAY - TAIL RELAY - ECU-DCC NO. 2 FUSE - ECU ACC FUSE - TAIL FUSE - ECU-IG1 NO. 4 FUSE - ECU-IG1 NO. 3 FUSE - METER-IG2 FUSE - HAZ FUSE - STOP FUSE - BKUP LP FUSE |
