On-Vehicle Inspection [02/2017 - ]: Procedure

  1. CHECK ENGINE OIL LEVEL
    1. Warm up and stop the engine, then wait for 5 minutes.
    2. Check that the engine oil level is between the low level and full level marks on the engine oil level dipstick.

      If the level is low, check for engine oil leaks and add engine oil to the full level mark.

      NOTE:

      Do not add engine oil to above the full level mark.

  2. CHECK ENGINE OIL QUALITY
    1. Check the engine oil for deterioration, water intrusion, discoloration or thinning.

      If the quality is visibly poor, replace the engine oil and oil filter element.

  3. CHECK OIL PRESSURE
    WARNING:
    • When working near the engine room while the engine has started or the power source mode is ignition switch to ON (IG), do not touch the fan and generator V belt or rotating components such as the fan, etc.
      GTY600652Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Touching the fan and generator V belt or rotating components such as the fan, etc. could result in your hand or clothing getting caught and pulled in.
    • Do not touch the engine or exhaust manifold converter sub-assembly when they are hot.
      GTY672548Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a High temperature areas
    • Touching the engine or exhaust manifold converter sub-assembly when they are hot could result in burns.
    • To prevent burns, do not remove the engine oil pressure switch assembly while the engine is hot.
      GTY746177Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    • Removing the engine oil pressure switch assembly while the engine is hot could result in burns caused by contact with hot engine oil.
    NOTE:

    Clean the hose and adapter of the oil pressure gauge before and after measurement.

    1. Remove the engine oil pressure switch assembly.

      Refer to REMOVAL [02/2017 - ]

      WARNING:

      Make sure the engine is cold when removing the engine oil pressure switch assembly to prevent burns caused by hot engine oil.

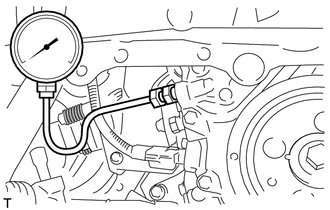

    2. Install an oil pressure gauge with the adapter.
      GTY484127Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Warm up the engine.

      HINT:

      After warming up the engine, the engine coolant temperature is 75 to 100°C (167 to 212°F).

    4. Check the engine oil pressure.

      Standard Oil Pressure

      Engine Condition Oil Pressure
      Idling 25 kPa (0.3 kgf/cm2 , 3.6 psi) or higher
      3000 rpm 150 to 400 kPa (1.5 to 4.1 kgf/cm2 , 22 to 58 psi)

      If the result is not as specified, check the quality of the engine oil and check the oil paths for clogging. Repair or replace if necessary. If the engine oil pressure is still not as specified, check the oil pump assembly.

      Refer to INSPECTION [02/2017 - ]

    5. Remove the oil pressure gauge with the adapter.
      WARNING:

      Make sure the engine is cold when removing the oil pressure gauge to prevent burns caused by hot engine oil.

    6. Install the engine oil pressure switch assembly.

      Refer to INSTALLATION [02/2017 - ]

    7. Inspect for engine oil leaks.

      Refer to PROCEDURE - Step 6 [02/2017 - 10/2017] , or refer to PROCEDURE - Step 6 [10/2017 - ]
