Electric Parking Brake System
>>
Electric Parking Brake System AUTO Function Circuit [02/2017 - ]
>>
Wiring Diagram
Electric Parking Brake System AUTO Function Circuit [02/2017 - ]: Wiring Diagram

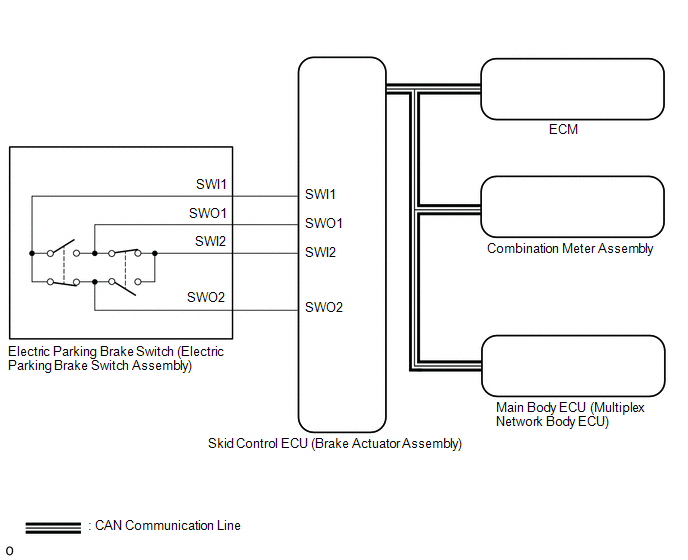

Fig 1: Electric Parking Brake System Auto Function Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
