DTC C13A6: Open or Short Circuit in Motor [05/2018 - ]: Wiring Diagram

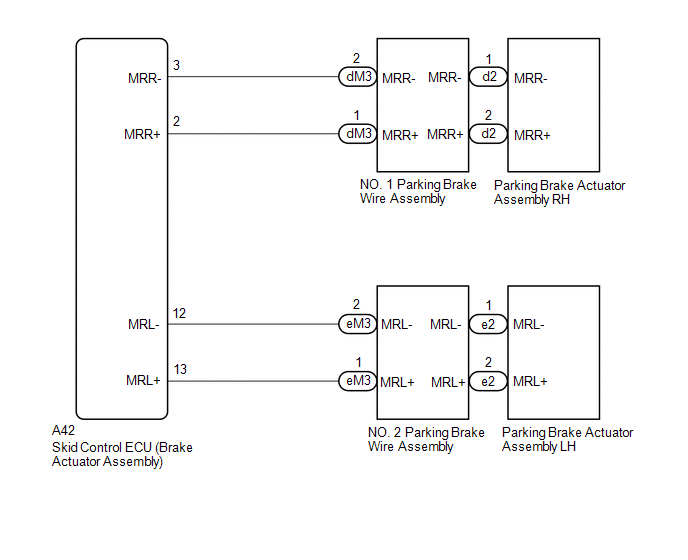

Fig 1: Open Or Short Circuit In Motor Circuit Diagram

GTY860491

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
