DTC C13A6: Open or Short Circuit in Motor [02/2017 - 05/2018]: Wiring Diagram

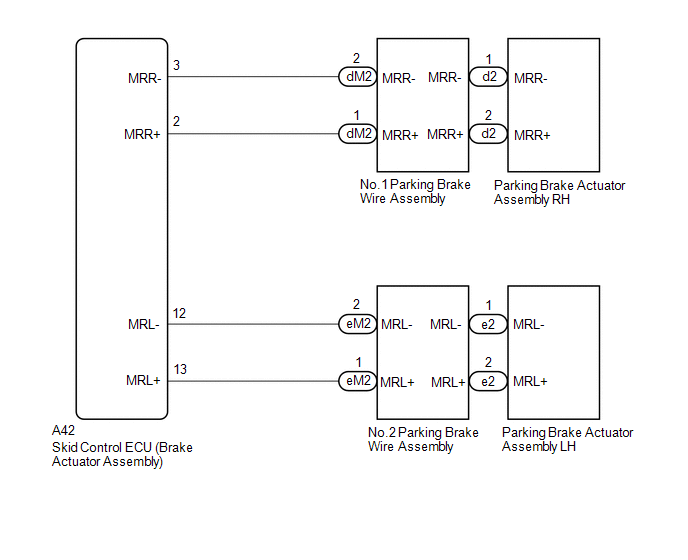

Fig 1: Open Or Short Circuit In Motor Circuit Diagram

GTY746656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
