Reassembly [02/2017 - ]: Procedure

HINT:

• Using the same procedure, install every No. 1 rear spoiler protector.
• When installing the No. 1 rear spoiler protector, heat the rear spoiler assembly using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rear spoiler assembly surface.
   1. Using a heat light, heat the rear spoiler assembly surface.
   2. Remove the double-sided tape from the rear spoiler assembly.
   3. Wipe off any tape adhesive residue with cleaner.
2. Using a heat light, heat the rear spoiler assembly.
3. Remove the release paper from a new No. 1 rear spoiler protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

4. Install the No. 1 rear spoiler protector as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

   HINT:

   Install the No. 1 rear spoiler protector along the line on the rear spoiler assembly.

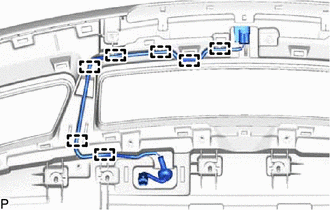

1. Engage the guides to install the center stop light cord assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

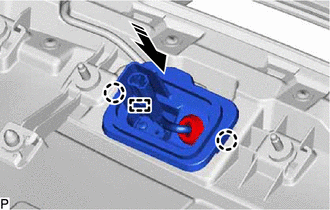

1. Engage the guide to install the No. 5 rear spoiler retainer.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

2. Install the screw.
3. Engage the guide and claws to install the rear side spoiler sub-assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

Refer to PROCEDURE - Step 1

HINT:

• Using the same procedure, install every No. 2 rear spoiler protector.
• When installing the No. 2 rear spoiler protector, heat the rear spoiler using a heat light.

WARNING:

• Do not touch the heat light and heated parts, touching the heat light may result in burns.
• Touching heated parts for a long time may result in burns.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*a	Heated Part
*b	Heat Light

1. Clean the rear spoiler assembly surface.
   1. Using a heat light, heat the rear spoiler assembly surface.
   2. Remove the double-sided tape from the rear spoiler assembly.
   3. Wipe off any tape adhesive residue with cleaner.
2. Using a heat light, heat the rear spoiler assembly.
3. Remove the release paper from new No. 2 rear spoiler protector.

   HINT:

   After removing the release paper, keep the exposed adhesive free from foreign matter.

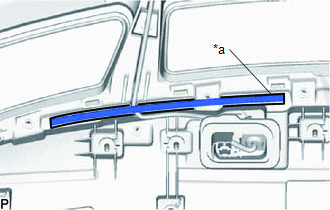

4. Install the No. 2 rear spoiler protector as shown in the illustration.

   HINT:

   Install each No. 2 rear spoiler protector along the line on the rear spoiler assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a

   Line

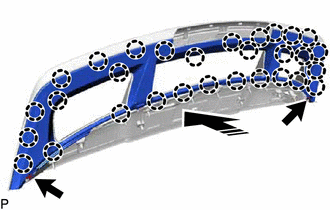

1. Engage the claws to install the No. 2 rear spoiler as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Install in this Direction

2. Install the 2 screws.
