Components [02/2017 - ]

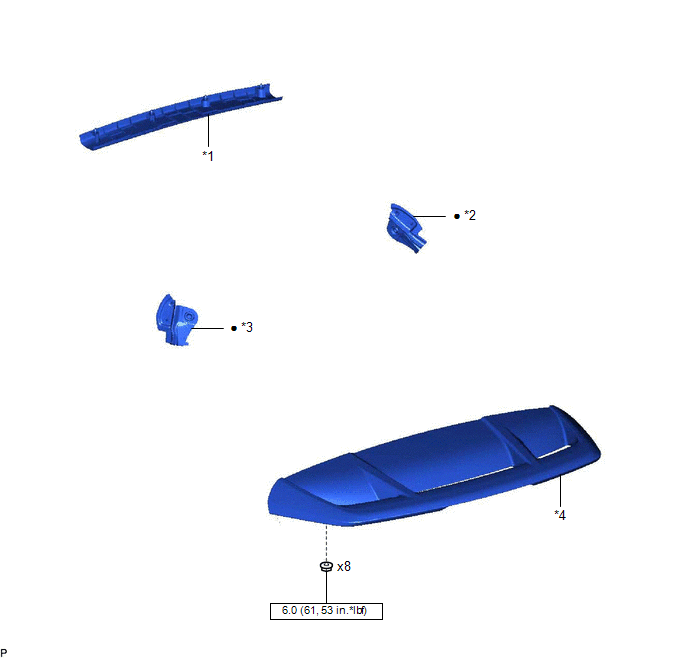

Fig 1: Rear Spoiler Replacement Components With Torque Specifications (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Callout	Description	Callout	Description
*1	BACK DOOR TRIM UPPER PANEL ASSEMBLY	*2	NO. 1 BACK DOOR PANEL PROTECTOR
*3	NO. 2 BACK DOOR PANEL PROTECTOR	*4	REAR SPOILER ASSEMBLY
	Nm (kgfcm, ft.*lbf): Specified torque	•	Non-reusable part

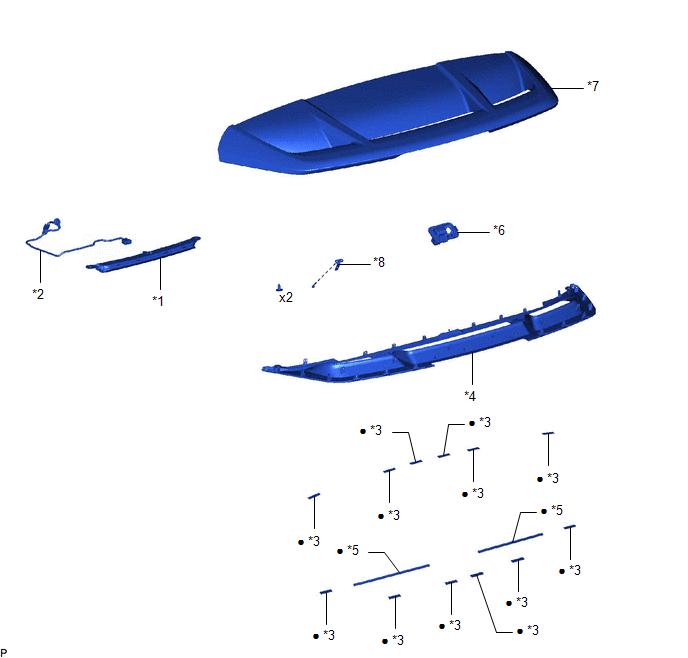

Fig 2: Rear Spoiler Replacement Components (2 Of 2)

*1	CENTER STOP LIGHT ASSEMBLY	*2	CENTER STOP LIGHT CORD ASSEMBLY
*3	NO. 1 REAR SPOILER PROTECTOR	*4	NO. 2 REAR SPOILER
*5	NO. 2 REAR SPOILER PROTECTOR	*6	REAR SIDE SPOILER SUB-ASSEMBLY
*7	REAR SPOILER	*8	NO. 5 REAR SPOILER RETAINER
•	Non-reusable part	-	-
