Removal [09/2019 - 12/2021]: Procedure

1. Remove the 7 clips and rear bumper side seal LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

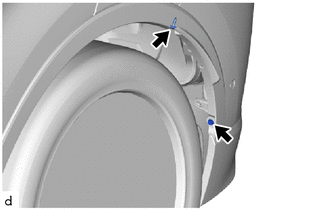

1. Remove the 2 screws.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

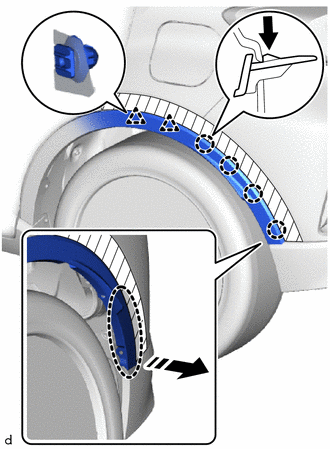

2. Apply protective tape around the quarter outside moulding LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Push
   	Protective Tape
   	Place Hand Here
   	Remove in this Direction

3. Disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.
   NOTE:

   To avoid damaging the claws, do not forcibly pull the quarter outside moulding LH.

4. Disengage the clips to disconnect the quarter outside moulding LH from the rear bumper assembly.

HINT:

Use the same procedure as for the LH side.

1. Remove the 6 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

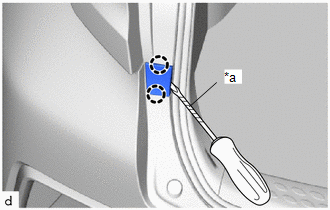

2. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to open the rear bumper upper cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   HINT:

   Use the same procedure for the RH side and LH side.

3. Remove the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

4. Apply protective tape around the rear bumper assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

   HINT:

   Use the same procedure for the RH side and LH side.

5. Disengage the claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   HINT:

   Use the same procedure for the RH side and LH side.

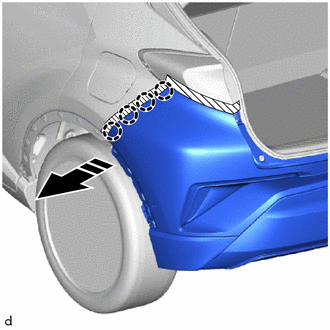

6. Disengage the claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

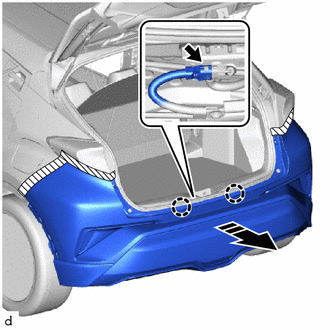

7. w/ Wire Harness:
   1. Disconnect the connector.
8. Remove the rear bumper assembly.
