Removal [02/2017 - 09/2019]: Procedure

1. Remove the 7 clips and rear bumper side seal LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Use the same procedure as for the LH side.

1. Apply protective tape around the quarter outside moulding LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

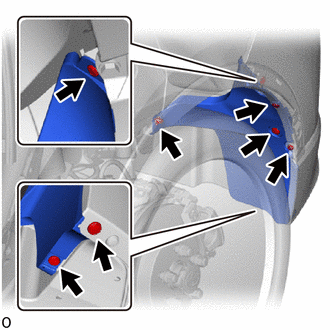

2. Remove the 2 screws.

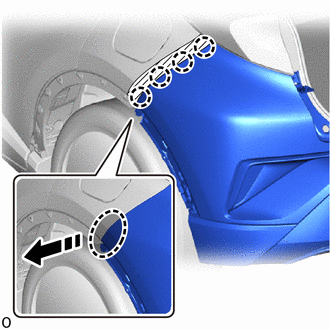

3. Disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   	Place Hand Here
   	Remove in this Direction

   NOTE:

   To avoid damaging the claws, do not forcibly pull the quarter outside moulding LH.

4. Disengage the clip to disconnect the quarter outside moulding LH from the rear bumper assembly.

HINT:

Use the same procedure as for the LH side.

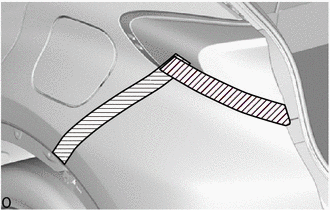

1. Apply protective tape around the rear bumper assembly.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Protective Tape

   HINT:

   Use the same procedure for the RH side and LH side.

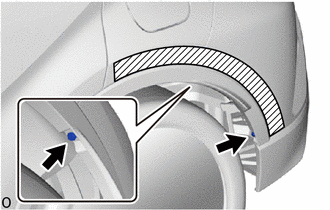

2. Remove the 6 clips.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

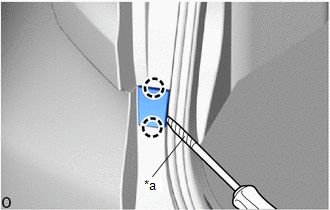

3. Using a screwdriver with its tip wrapped in protective tape, disengage the claws to open the rear bumper upper cover LH.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   *a	Protective Tape

   HINT:

   Use the same procedure for the RH side and LH side.

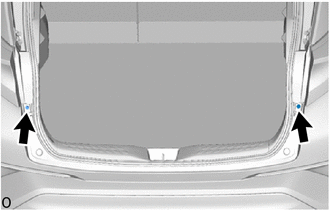

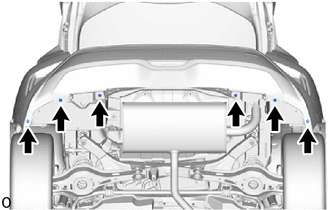

4. Remove the 2 bolts.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

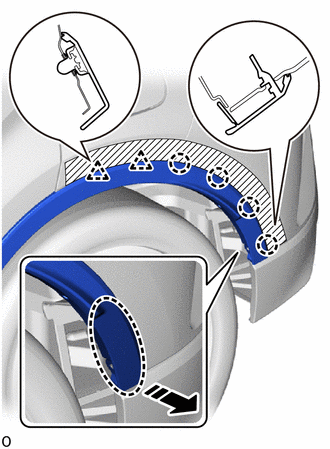

5. Disengage the claws as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction

   HINT:

   Use the same procedure for the RH side and LH side.

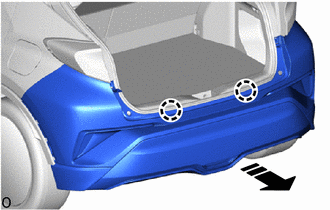

6. Disengage the claws to remove the rear bumper assembly as shown in the illustration.

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

   Remove in this Direction
