Components [09/2019 - 12/2021]
| *1 | QUARTER OUTSIDE MOULDING LH | *2 | QUARTER OUTSIDE MOULDING RH |
| *3 | REAR BUMPER ASSEMBLY | *4 | REAR BUMPER SIDE SEAL LH |
| *5 | REAR BUMPER SIDE SEAL RH | - | - |

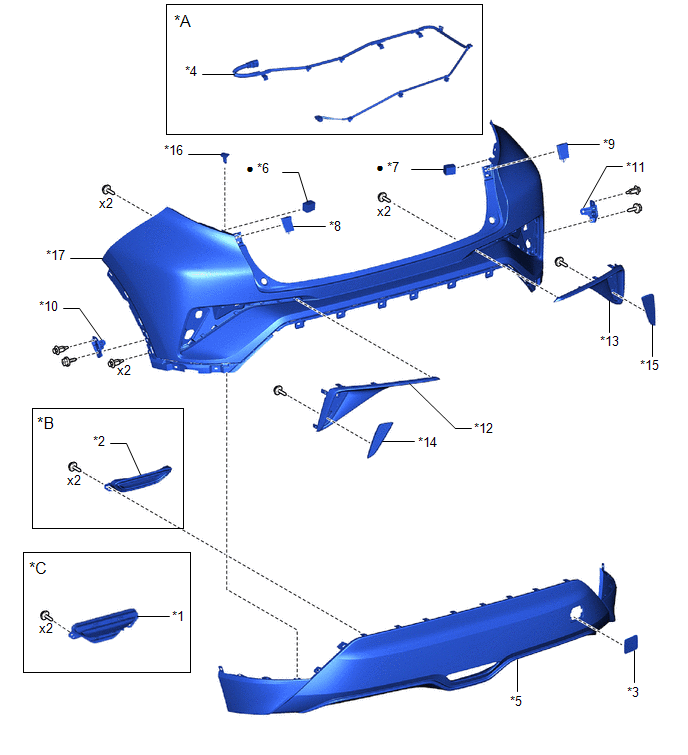

| *A | w/ Wire Harness | *B | for LED Type Back-up Light |
| *C | for Bulb Type Back-up Light | - | - |
| *1 | BACK-UP LIGHT ASSEMBLY | *2 | FOG LIGHT BRACKET |
| *3 | NO. 1 REAR BUMPER PLATE | *4 | NO. 6 FLOOR WIRE |
| *5 | REAR BUMPER CENTER GUARD | *6 | REAR BUMPER PAD LH |
| *7 | REAR BUMPER PAD RH | *8 | REAR BUMPER PLATE LH |
| *9 | REAR BUMPER PLATE RH | *10 | REAR BUMPER SIDE STAY LH |
| *11 | REAR BUMPER SIDE STAY RH | *12 | REAR BUMPER UPPER COVER LH |
| *13 | REAR BUMPER UPPER COVER RH | *14 | REFLEX REFLECTOR ASSEMBLY LH |
| *15 | REFLEX REFLECTOR ASSEMBLY RH | *16 | OUTSIDE MOULDING RETAINER |
| *17 | REAR BUMPER COVER | - | - |
| • | Non-reusable part | - | - |
| *1 | REAR BUMPER SIDE RETAINER LH | *2 | REAR BUMPER SIDE RETAINER RH |
| *3 | REAR BUMPER UPPER RETAINER LH | *4 | REAR BUMPER UPPER RETAINER RH |
| *5 | REAR COMBINATION LIGHT COVER LH | *6 | REAR COMBINATION LIGHT COVER RH |
| *7 | REAR COMBINATION LIGHT LH | *8 | REAR COMBINATION LIGHT RH |

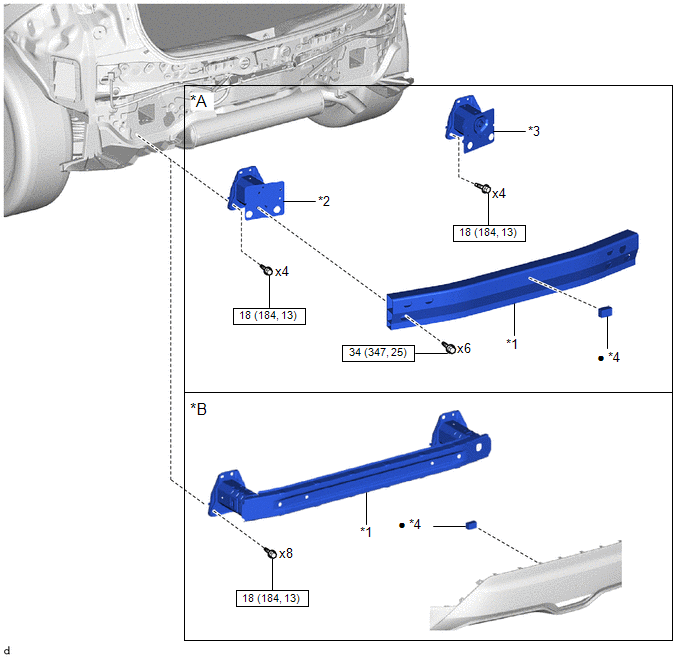

| Callout | Description | Callout | Description |
| *A | for Type A | *B | for Type B |
| *1 | REAR BUMPER REINFORCEMENT SUB-ASSEMBLY | *2 | REAR BUMPER ARM SUB-ASSEMBLY LH |
| *3 | REAR BUMPER ARM SUB-ASSEMBLY RH | *4 | REAR BUMPER PAD |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
