Exterior Panels / Trim - Service Information (2 Of 2)
>>
Radiator Grille
>>
Components [09/2019 - ]
Components [09/2019 - ]

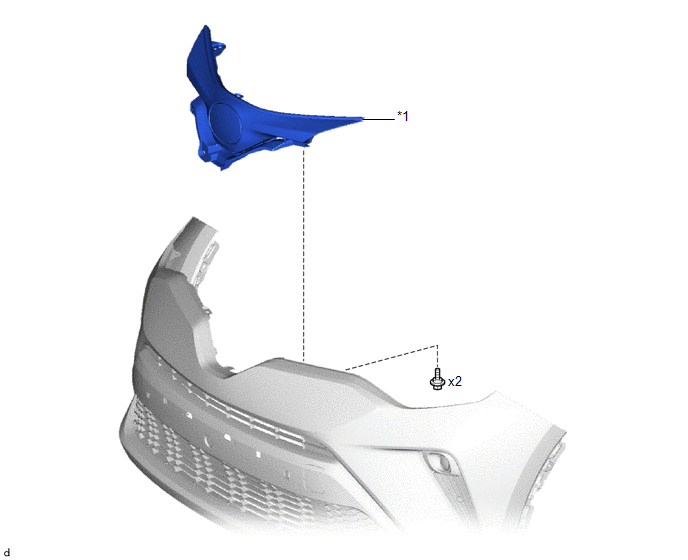

Fig 1: Radiator Grille Replacement Components [09/2019 - ] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
RADIATOR GRILLE
-
-

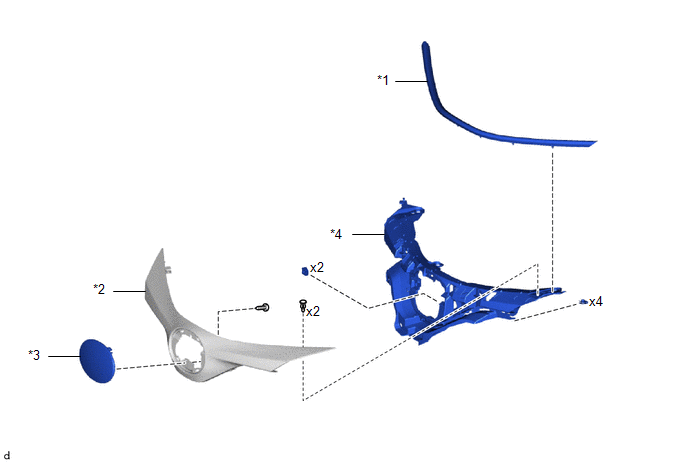

Fig 2: Radiator Grille Replacement Components [09/2019 - ] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HOOD TO RADIATOR GRILLE SEAL
*2
RADIATOR GRILLE
*3
RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
*4
RADIATOR INSIDE GRILLE
