Radiator Grille
>>
Components [02/2017 - 09/2019]
Components [02/2017 - 09/2019]

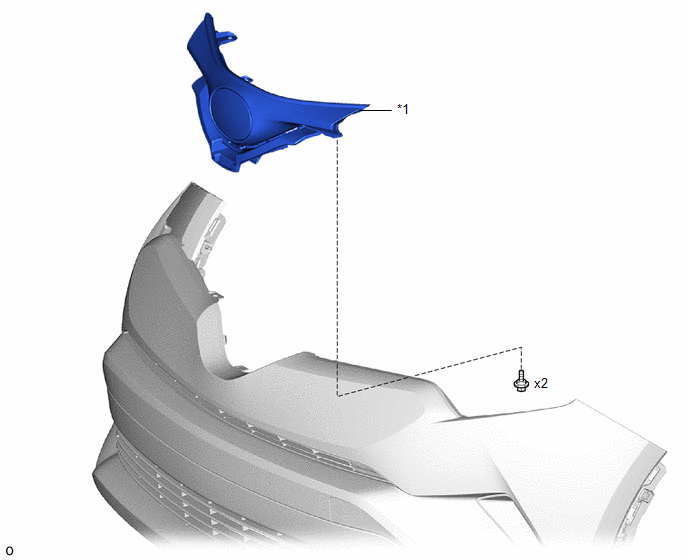

Fig 1: Radiator Grille Replacement Components [02/2017 - 09/2019] (1 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
RADIATOR GRILLE
-
-

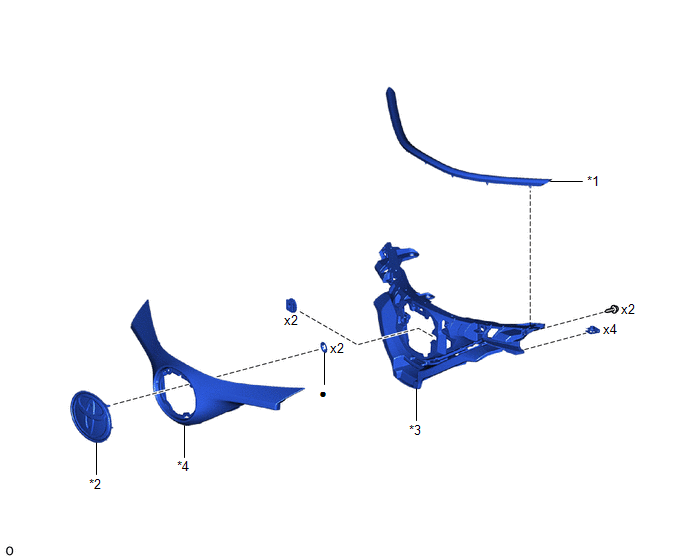

Fig 2: Radiator Grille Replacement Components [02/2017 - 09/2019] (2 Of 2)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1
HOOD TO RADIATOR GRILLE SEAL
*2
RADIATOR GRILLE (OR FRONT PANEL) EMBLEM
*3
RADIATOR INSIDE GRILLE
*4
RADIATOR GRILLE
•
Non-reusable part
-
-
