Components [05/2018 - ]

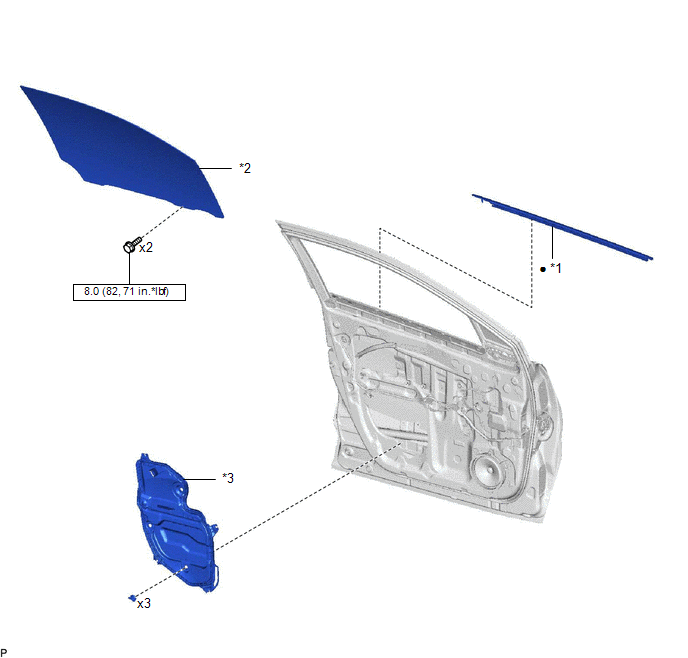

Fig 1: Front Door Belt Moulding Replacement Components With Torque Specifications [05/2018 - ]
GTY916852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*1 FRONT DOOR BELT MOULDING ASSEMBLY *2 FRONT DOOR GLASS SUB-ASSEMBLY
*3 FRONT DOOR SERVICE HOLE COVER - -
N*m (kgf*cm, ft.*lbf): Specified torque • Non-reusable part
