Components [02/2017 - 05/2018]

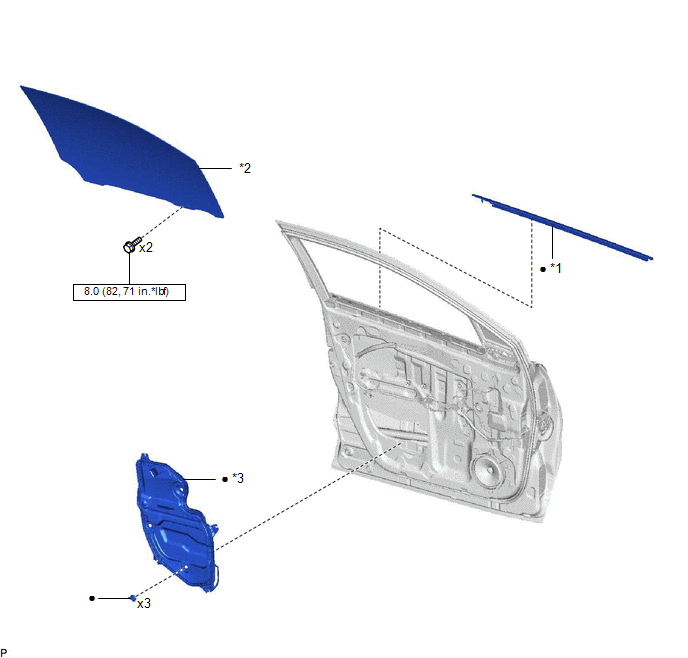

Fig 1: Front Door Belt Moulding Replacement Components With Torque Specifications [02/2017 - 05/2018]
| Callout | Description | Callout | Description |
| *1 | FRONT DOOR BELT MOULDING ASSEMBLY | *2 | FRONT DOOR GLASS SUB-ASSEMBLY |
| *3 | FRONT DOOR SERVICE HOLE COVER | - | - |
| N*m (kgf*cm, ft.*lbf): Specified torque | • | Non-reusable part |
