  1. REMOVE RADIATOR COVER
    1. Remove the 2 hood bumper cushions.

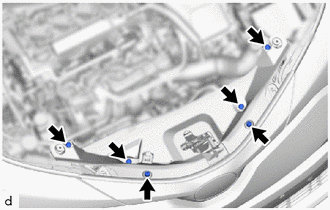

      GTY847762Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 4 clips.
    3. Disengage the claws and guides to remove the radiator cover as shown in the illustration.

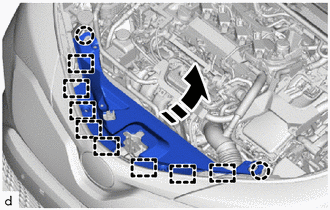

      GTY854972Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  2. SEPARATE FRONT FENDER MOULDING SUB-ASSEMBLY LH
    1. Apply protective tape around the front fender moulding sub-assembly LH.
      GTY771514Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape
    2. Remove the 3 screws.
    3. Remove the 2 clips.
    4. Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.
      GTY764676Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a 90 deg
    5. Pull back the edge of the front fender liner LH and disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.

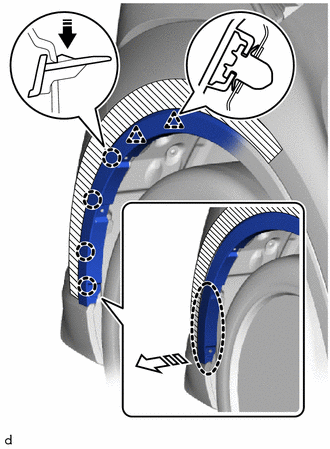

      GTY910550Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction (1)
      Remove in this Direction (2)
      NOTE:
      • Do not apply excessive force when pulling back the front fender liner LH.
      • To avoid damaging the claws, do not forcibly pull the front fender moulding sub-assembly LH.
    6. Disengage the clips and disconnect the front fender moulding sub-assembly LH.
  3. SEPARATE FRONT FENDER MOULDING SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE FRONT BUMPER ASSEMBLY
    1. Apply protective tape around the front bumper assembly.

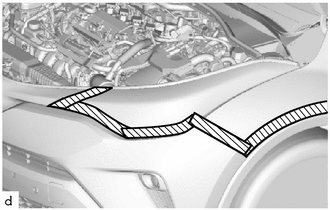

      GTY869585Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Protective Tape

      HINT:

      Use the same procedure for the RH side and LH side.

    2. Remove the 3 bolts.

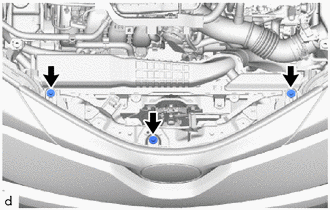

      GTY847766Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the 6 screws.
      GTY746033Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Disengage the claws as shown in the illustration.

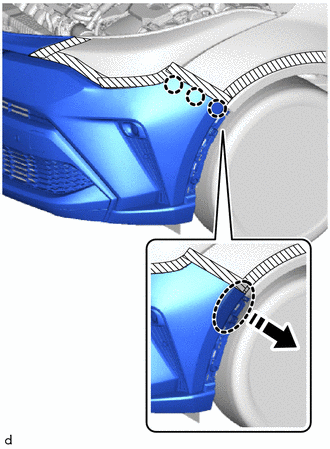

      GTY861310Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Place Hand Here
      Remove in this Direction

      HINT:

      Use the same procedure for the RH side and LH side.

    5. w/ TOYOTA Parking Assist-sensor System:

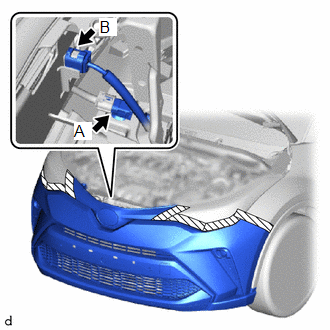

      GTY933628Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disconnect the connector A.
    6. w/ Wire Harness:
      1. Disconnect the connector B.
    7. Disengage the claws to remove the front bumper assembly as shown in the illustration.

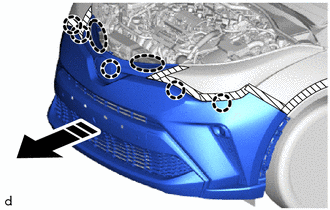

      GTY933658Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
