Removal [02/2017 - 10/2017]: Procedure

REMOVE RADIATOR COVER

Remove the 2 hood bumper cushions.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

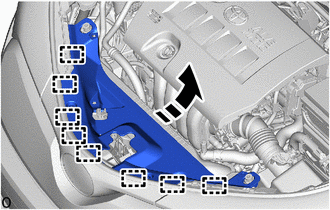

Disengage the guides to remove the radiator cover as shown in the illustration.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove in this Direction

SEPARATE FRONT FENDER MOULDING SUB-ASSEMBLY LH

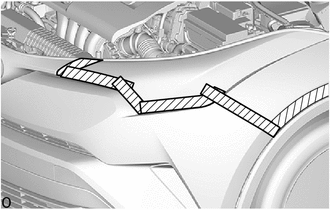

Apply protective tape around the front fender moulding sub-assembly LH.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

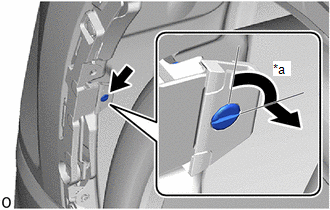

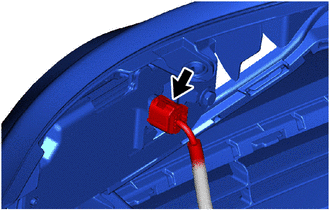

Using a screwdriver, turn the pin 90 degrees and remove the pin hold clip.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

90 deg

HINT:

Use the same procedure for the RH side and LH side.

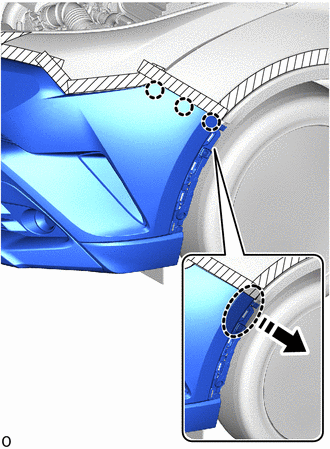

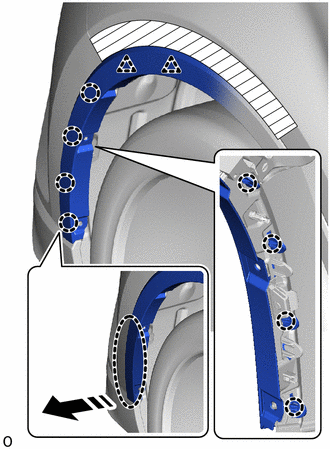

Pull back the edge of the front fender liner LH and disengage the claws by pushing the area indicated by the arrow in the illustration with a finger.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

	Place Hand Here
	Remove in this Direction

NOTE:

Do not apply excessive force when pulling back the front fender liner LH.
To avoid damaging the claws, do not forcibly pull the front fender moulding sub-assembly LH.

SEPARATE FRONT FENDER MOULDING SUB-ASSEMBLY RH
HINT:

Use the same procedure as for the LH side.

REMOVE FRONT BUMPER ASSEMBLY

Apply protective tape around the front bumper assembly.

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Protective Tape

HINT:

Use the same procedure for the RH side and LH side.

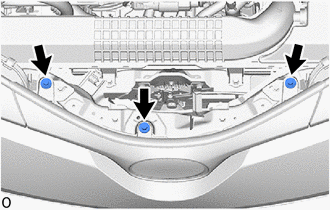

Remove the 3 bolts.

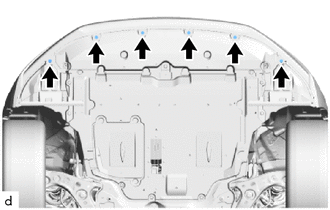

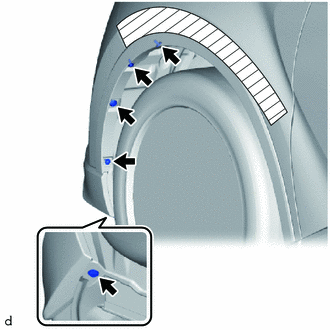

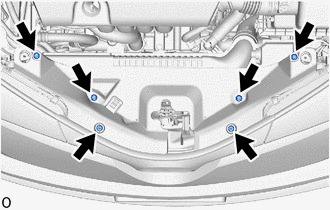

Remove the 6 screws.

Disengage the claws as shown in the illustration.

	Place Hand Here
	Remove in this Direction

HINT:

Use the same procedure for the RH side and LH side.

Disconnect the connector.

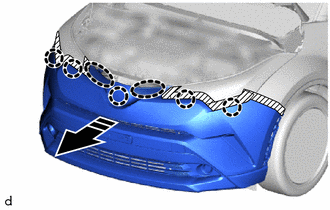

Disengage the claw to remove front bumper assembly as shown in the illustration.

	Place Hand Here
	Remove in this Direction
