Reassembly [10/2017 - 12/2017]: Procedure

  1. INSTALL NO. 1 RADIATOR AIR GUIDE LH
    1. Engage the guide and claw to install the No. 1 radiator air guide LH as shown in the illustration.

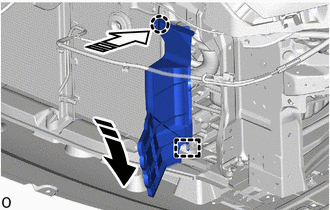

      GTY768121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  2. INSTALL NO. 1 RADIATOR AIR GUIDE RH
    1. Engage the guide and claw to install the No. 1 radiator air guide RH as shown in the illustration.
      GTY765865Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  3. INSTALL FRONT BUMPER BRACKET LH
    1. Install the front bumper bracket LH with the 4 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      GTY763725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT BUMPER BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  5. INSTALL NO. 2 FRONT BUMPER REINFORCEMENT

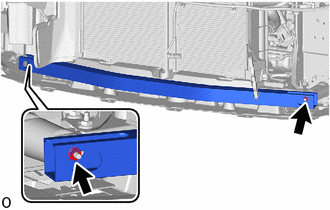

    1. Install the No. 2 front bumper reinforcement with the 2 nuts.
      GTY763718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

  6. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH
    1. for USA and Canada:
      1. Engage the guides to install the side member bracket sub-assembly LH.
        GTY773642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 4 bolts.

        Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

    2. except USA and Canada:
      1. Engage the guides to install the side member bracket sub-assembly LH.
        GTY773292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 4 bolts.

        Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

      3. Engage the wire harness clamp.
  7. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  8. INSTALL FRONT BUMPER REINFORCEMENT
    1. for USA and Canada:

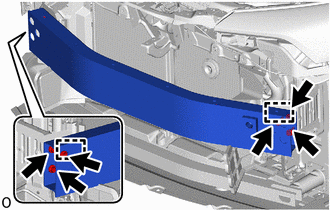

      1. Engage the guides to install the front bumper reinforcement.
        GTY763720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 6 bolts.

        Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

      3. Engage the wire harness clamps.

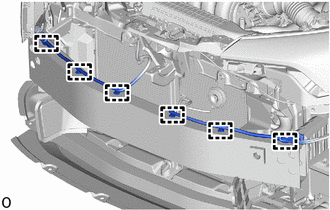

        GTY763719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. except USA and Canada:
      1. Engage the guides to install the front bumper reinforcement.
        GTY762143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 6 bolts.

        Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

      3. Engage the wire harness clamps.
        GTY762142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL LOWER FRONT BUMPER ABSORBER
    1. for USA and Canada:

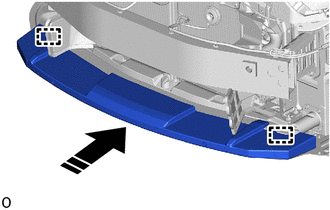

      GTY742040Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      1. Engage the guides to install the lower front bumper energy absorber as shown in the illustration.

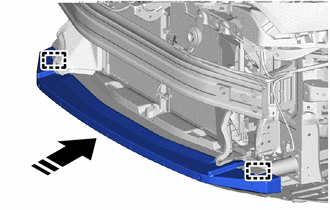

    2. except USA and Canada:
      GTY748941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      1. Engage the guides to install the lower front bumper energy absorber as shown in the illustration.
  10. INSTALL FRONT ENERGY ABSORBER MOUNTING REINFORCEMENT (for USA and Canada)
    1. Engage the claws to install the front energy absorber mounting reinforcement.
      GTY763721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT BUMPER ENERGY ABSORBER
    1. for USA and Canada:
      GTY742414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      1. Engage the guides to install the front bumper energy absorber as shown in the illustration.
    2. except USA and Canada:

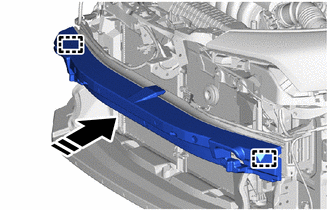

      GTY742877Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
      1. Engage the guides to install the front bumper energy absorber as shown in the illustration.
  12. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL
    1. Install the No. 1 radiator to support seal as shown in the illustration.
      GTY743943Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction

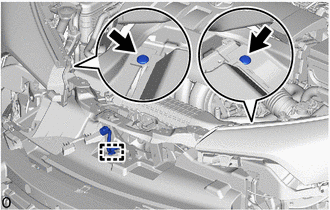

    2. Install the 2 clips.
      GTY763707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the wire harness clamp.
  13. INSTALL NO. 1 RADIATOR GRILLE RETAINER

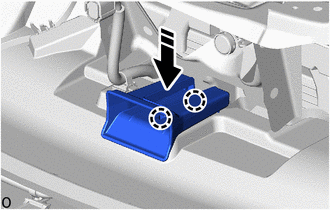

    1. Engage the claws to install the No. 1 radiator grille retainer as shown in the illustration.
      GTY745293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  14. INSTALL FRONT BUMPER SIDE RETAINER LH

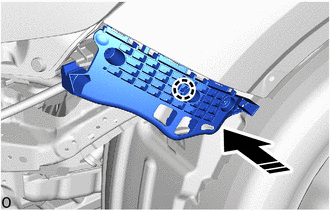

    1. Engage the claw to install the front bumper side retainer LH as shown in the illustration.
      GTY764342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the screw.
      GTY764389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Screw
    3. Install the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  15. INSTALL FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  16. INSTALL NO. 1 RADIATOR GRILLE MOULDING (except USA and Canada)

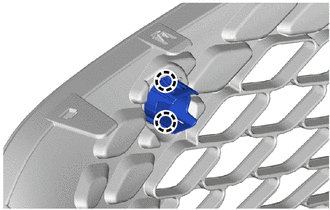

    1. Engage the claws to install the No. 1 radiator grille moulding.
      GTY762138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

  17. INSTALL FRONT BUMPER LOWER COVER
    1. for USA and Canada:
      1. Install the 8 grommets.
        GTY763708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the claws and guides to install the front bumper lower cover.

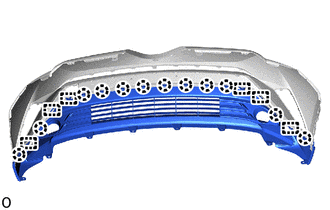

        GTY763703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

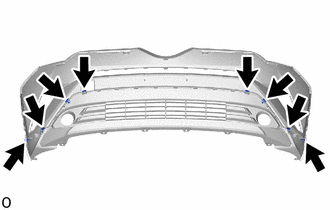

      3. Install the 2 clips and 6 outside moulding retainers.
        GTY763702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. except USA and Canada:
      1. Install the 8 grommets.
        GTY762146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Engage the claws and guides to install the front bumper lower cover.
        GTY773293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Install the 2 clips and 8 outside moulding retainers.
        GTY762148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL INNER RADIATOR GRILLE
    1. Engage the claws to install the inner radiator grille.

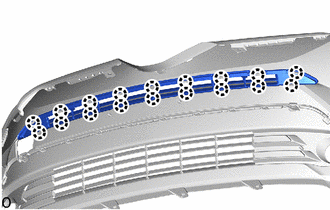

      GTY763704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. for USA and Canada:

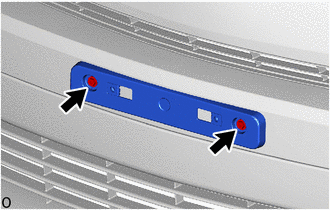

      1. Install the front bumper extension mounting bracket with the 2 screws.
        GTY773639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. except USA and Canada:

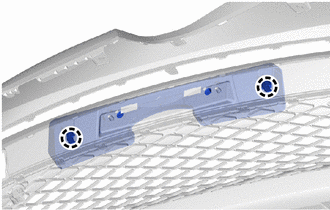

      1. Engage the claws to install the front bumper extension mounting bracket.
        GTY762147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Install the 2 screws.
        GTY748200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL FRONT BUMPER HOLE COVER LH
    1. GTY763705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Engage the hook and claws to install the front bumper hole cover LH.

  21. INSTALL FRONT FENDER LINER RETAINER
    1. Engage the claws to install the front fender liner retainer.
      GTY763713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

  22. INSTALL FRONT BUMPER SIDE MOUNTING BRACKET LH
    1. Engage the claws to install the front bumper side mounting bracket LH.

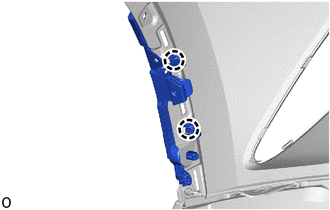

      GTY763712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the clip.

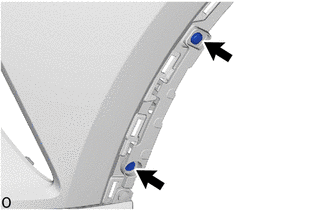

      GTY763715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the screw.
  23. INSTALL FRONT BUMPER SIDE MOUNTING BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  24. INSTALL FOG LIGHT COVER LH
    1. w/ Fog Light:
      GTY748198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Install the fog light cover LH with the 3 screws.
    2. w/o Fog Light:
      1. Install the fog light cover LH with the 3 screws.
        GTY763714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL FOG LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  26. INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)
    1. Engage the guide to install the fog light assembly LH.
      GTY748197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 2 screws.
  27. INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  28. INSTALL FRONT BUMPER EXTENSION LH
    GTY763717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. Engage the claws and guide to install the front bumper extension LH.
  29. INSTALL FRONT BUMPER EXTENSION RH

    HINT:

    Use the same procedure as for the LH side.

  30. INSTALL RADIATOR GRILLE

    See step  1
