Reassembly [09/2019 - 12/2021]: Procedure

  1. INSTALL NO. 1 RADIATOR AIR GUIDE LH
    1. Engage the guide and claw to install the No. 1 radiator air guide LH as shown in the illustration.

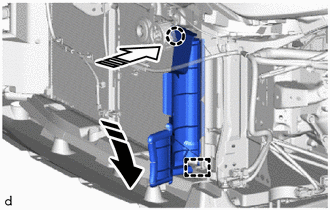

      GTY901979Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  2. INSTALL NO. 1 RADIATOR AIR GUIDE RH
    1. Engage the guide and claw to install the No. 1 radiator air guide RH as shown in the illustration.

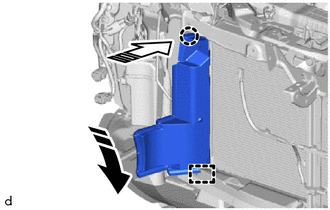

      GTY895060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction (1)
      Install in this Direction (2)
  3. INSTALL FRONT BUMPER BRACKET LH
    1. Install the front bumper bracket LH with the 4 bolts.

      Torque: 12 N*m (122 kgf*cm, 9 ft.*lbf)

      GTY763725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT BUMPER BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  5. INSTALL NO. 2 FRONT BUMPER REINFORCEMENT
    1. Install the No. 2 front bumper reinforcement with the 2 nuts.
      GTY763718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 30 N*m (306 kgf*cm, 22 ft.*lbf)

  6. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH (for Type A)
    1. Engage the guides to install the front side member bracket sub-assembly LH.
      GTY774273Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 5 bolts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

  7. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH (for Type B)
    1. Engage the guides to install the front side member bracket sub-assembly LH.
      GTY773292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 bolts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

    3. Engage the wire harness clamp.
  8. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH (for Type A)
    1. Engage the guides to install the front side member bracket sub-assembly RH.
      GTY766645Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 4 bolts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

  9. INSTALL FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH (for Type B)

    HINT:

    Use the same procedure as for the LH side.

  10. INSTALL FRONT BUMPER REINFORCEMENT (for Type A)
    1. Engage the guides to install the front bumper reinforcement.

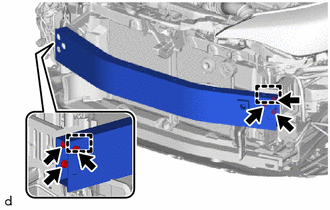

      GTY847735Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 6 bolts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

    3. Engage the wire harness clamps.

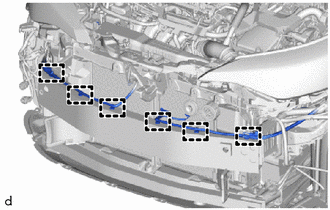

      GTY847733Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL FRONT BUMPER REINFORCEMENT (for Type B)
    1. Engage the guides to install the front bumper reinforcement.

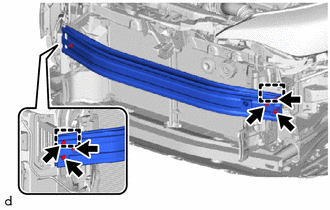

      GTY847728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the 6 bolts.

      Torque: 50 N*m (510 kgf*cm, 37 ft.*lbf)

    3. Engage the wire harness clamps.

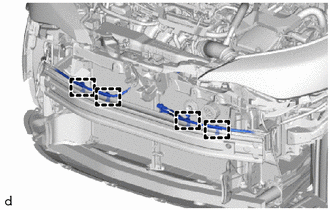

      GTY847736Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL LOWER FRONT BUMPER ABSORBER
    1. Engage the guides to install the lower front bumper energy absorber as shown in the illustration.

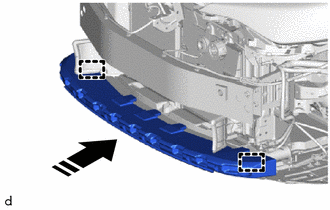

      GTY913900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  13. INSTALL FRONT BUMPER ENERGY ABSORBER

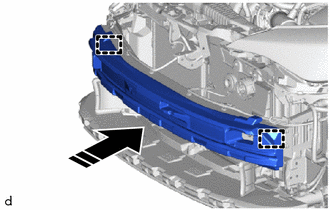

    1. Engage the guides to install the front bumper energy absorber as shown in the illustration.
      GTY924705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  14. INSTALL NO. 1 RADIATOR TO SUPPORT SEAL
    1. Install the No. 1 radiator to support seal as shown in the illustration.

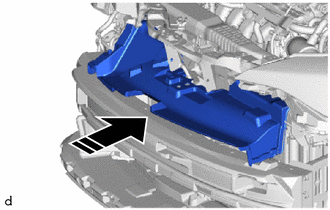

      GTY855611Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the 2 clips.

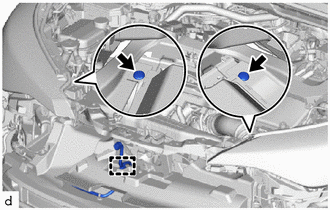

      GTY847779Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Engage the wire harness clamp.
  15. INSTALL NO. 1 RADIATOR GRILLE RETAINER
    1. Engage the claws to install the No. 1 radiator grille retainer as shown in the illustration.
      GTY745293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
  16. INSTALL FRONT BUMPER SIDE RETAINER LH
    1. Engage the claw to install the front bumper side retainer LH as shown in the illustration.
      GTY764342Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Install in this Direction
    2. Install the screw.
      GTY764389Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      *a Bolt
      *b Screw
    3. Install the bolt.

      Torque: 5.4 N*m (55 kgf*cm, 48 in.*lbf)

  17. INSTALL FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  18. INSTALL FRONT BUMPER EXTENSION

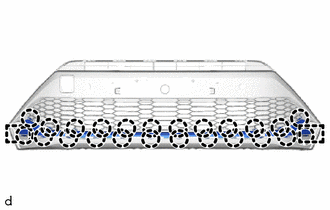

    1. Engage the claws and guides to install the front bumper extension.
      GTY847751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL FRONT BUMPER LOWER COVER
    1. Install the 6 grommets.
      GTY847778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

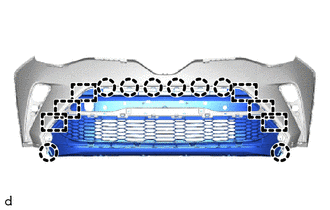

    2. Engage the guides and claws to install the front bumper lower cover.
      GTY928303Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 clips and 6 outside moulding retainers.

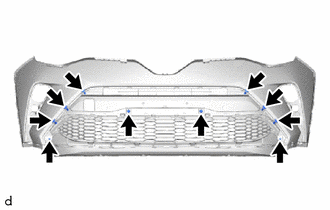

      GTY847789Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the 2 screws.
  20. INSTALL FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. for TMC Made:
      1. Install the front bumper extension mounting bracket with the 2 screws.

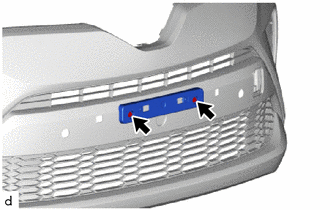

        GTY928302Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. for TMMT Made:

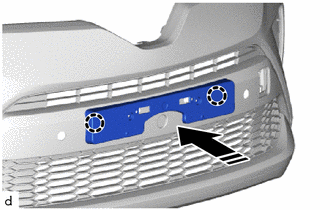

      1. Engage the claws to install the front bumper extension mounting bracket as shown in the illustration.
        GTY872852Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Install in this Direction
      2. Install the 2 screws.

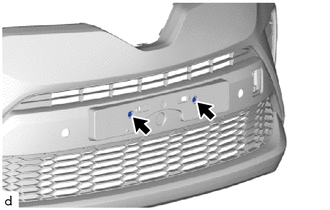

        GTY847786Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL FRONT BUMPER HOLE COVER
    1. GTY847784Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

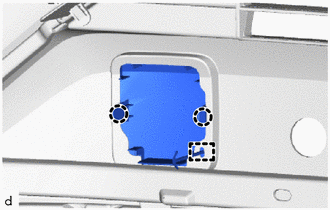

      Engage the hook and claws to install the front bumper hole cover.

  22. INSTALL FRONT BUMPER SIDE MOUNTING BRACKET LH
    1. Engage the claws to install the front fender liner retainer.
      GTY763713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Engage the claws to install the front bumper side mounting bracket LH.

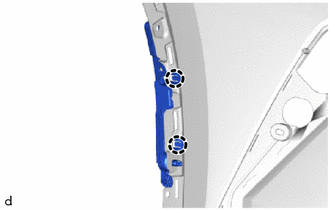

      GTY847783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the clip.
      GTY847781Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the screw.
  23. INSTALL FRONT BUMPER SIDE MOUNTING BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  24. INSTALL FRONT BUMPER HOLE COVER LH

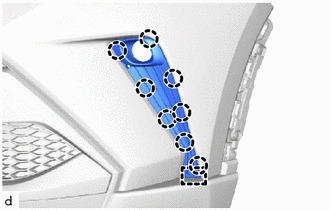

    1. Engage the guide and claws to install the front bumper hole cover LH.
      GTY847780Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  25. INSTALL FRONT BUMPER HOLE COVER RH

    HINT:

    Use the same procedure as for the LH side.

  26. INSTALL FOG LIGHT COVER LH (w/ Fog Light)

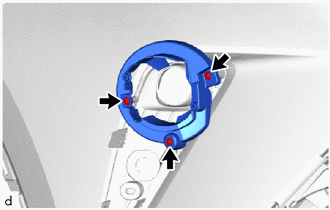

    1. Install the fog light cover LH with the 3 screws.
      GTY887594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. INSTALL FOG LIGHT COVER RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  28. INSTALL FRONT SPOILER COVER LH
    1. Install the grommet.
      GTY847770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

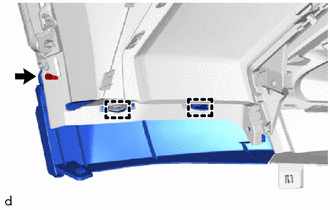

    2. Engage the guides to install the front spoiler cover LH.
      GTY847769Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the clip.
    4. Install the screw and 2 outside moulding retainers.

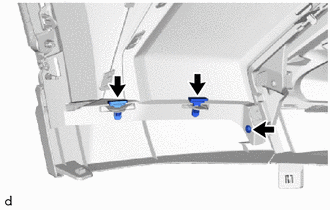

      GTY847768Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  29. INSTALL FRONT SPOILER COVER RH

    HINT:

    Use the same procedure as for the LH side.

  30. INSTALL NO. 5 ENGINE ROOM WIRE (w/ Wire Harness)
    1. Engage the clamps to install the No. 5 engine room wire.

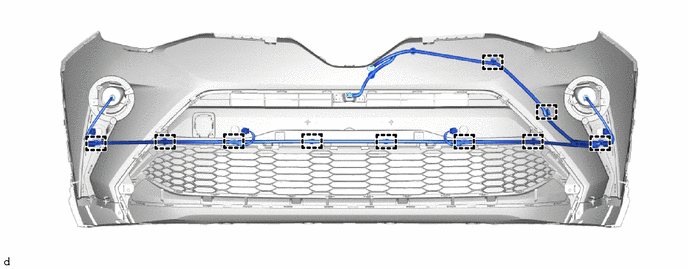

      GTY857083Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  31. INSTALL FOG LIGHT ASSEMBLY LH (w/ Fog Light)
  32. INSTALL FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  33. INSTALL RADIATOR GRILLE

    See step  [09/2019 - 08/2020] See step  [08/2020 - 12/2021]
