Disassembly [10/2017 - 12/2017]: Procedure

  1. REMOVE RADIATOR GRILLE

    See step  3

  2. REMOVE FRONT BUMPER EXTENSION LH
    1. Disengage the claws and guide to remove the front bumper extension LH.
      GTY763717Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE FRONT BUMPER EXTENSION RH

    HINT:

    Use the same procedure as for the LH side.

  4. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)
    1. Remove the 2 screws.
      GTY748197Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the guide to remove the fog light assembly LH.
  5. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    HINT:

    Use the same procedure as for the LH side.

  6. REMOVE FOG LIGHT COVER LH
    1. w/ Fog Light:
      1. Remove the 3 screws and fog light cover LH.
        GTY748198Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. w/o Fog Light:
      1. Remove the 3 screws and fog light cover LH.
        GTY763714Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FOG LIGHT COVER RH

    HINT:

    Use the same procedure as for the LH side.

  8. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET LH
    1. Remove the screw.
      GTY763715Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the clip.
    3. Disengage the claws to remove the front bumper side mounting bracket LH.
      GTY763712Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE FRONT BUMPER SIDE MOUNTING BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  10. REMOVE FRONT FENDER LINER RETAINER
    1. Disengage the claws to remove the front fender liner retainer.
      GTY763713Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

  11. REMOVE FRONT BUMPER HOLE COVER
    1. Disengage the claws and hook to remove the front bumper hole cover.
      GTY763705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. for USA and Canada:
      1. Remove the 2 screws and front bumper extension mounting bracket.
        GTY773639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. except USA and Canada:
      1. Remove the 2 screws.
        GTY748200Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the claws to remove the front bumper extension mounting bracket.
        GTY762147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. REMOVE INNER RADIATOR GRILLE
    1. GTY763704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Disengage the claws to remove the inner radiator grille.

  14. REMOVE FRONT BUMPER LOWER COVER
    1. for USA and Canada:
      1. Remove the 2 clips and 6 outside moulding retainers.
        GTY763702Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the claws and guides to remove the front bumper lower cover.
        GTY763703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the 8 grommets.
        GTY763708Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. except USA and Canada:
      1. Remove the 2 clips and 8 outside moulding retainers.
        GTY762148Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the claws and guides to remove the front bumper lower cover.
        GTY773293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Remove the 8 grommets.
        GTY762146Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. REMOVE NO. 1 RADIATOR GRILLE MOULDING (except USA and Canada)
    1. Disengage the claws to remove the No. 1 radiator grille moulding.
      GTY762138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Use the same procedure for the opposite side.

  16. REMOVE FRONT BUMPER SIDE RETAINER LH
    1. Remove the bolt.
      GTY763724Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the claw to remove the front bumper side retainer LH as shown in the illustration.
      GTY773246Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  17. REMOVE FRONT BUMPER SIDE RETAINER RH

    HINT:

    Use the same procedure as for the LH side.

  18. REMOVE NO. 1 RADIATOR GRILLE RETAINER
    1. Disengage the claws to remove the No. 1 radiator grille retainer as shown in the illustration.
      GTY765764Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  19. REMOVE NO. 1 RADIATOR TO SUPPORT SEAL
    1. Disengage the wire harness clamp.
      GTY763707Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 clips.
    3. Remove the No. 1 radiator to support seal as shown in the illustration.
      GTY767325Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
  20. REMOVE FRONT BUMPER ENERGY ABSORBER
    1. for USA and Canada:
      1. Disengage the guides to remove the front bumper energy absorber as shown in the illustration.
        GTY741265Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
    2. except USA and Canada:
      1. Disengage the guides to remove the front bumper energy absorber as shown in the illustration.
        GTY764891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
  21. REMOVE FRONT ENERGY ABSORBER MOUNTING REINFORCEMENT (for USA and Canada)
    1. Disengage the claws to remove the front energy absorber mounting reinforcement.
      GTY763721Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. REMOVE LOWER FRONT BUMPER ABSORBER
    1. for USA and Canada:
      GTY770397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction
      1. Disengage the guides to remove the lower front bumper energy absorber as shown in the illustration.
    2. except USA and Canada:
      1. Disengage the guides to remove the lower front bumper energy absorber as shown in the illustration.
        GTY763298Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        Remove in this Direction
  23. REMOVE FRONT BUMPER REINFORCEMENT
    1. for USA and Canada:
      GTY763719Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      1. Disengage the wire harness clamps.
      2. Remove the 6 bolts.
        GTY763720Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the guides to remove the front bumper reinforcement.
    2. except USA and Canada:
      1. Disengage the wire harness clamps.
        GTY762142Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 6 bolts.
        GTY762143Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      3. Disengage the guides to remove the front bumper reinforcement.
  24. REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH
    1. for USA and Canada:
      1. Remove the 4 bolts.
        GTY773642Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Disengage the guides to remove the front side member bracket sub-assembly LH.
    2. except USA and Canada:
      1. Disengage the wire harness clamp.
        GTY773292Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      2. Remove the 4 bolts.
      3. Disengage the guides to remove the front side member bracket sub-assembly LH.
  25. REMOVE FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH

    HINT:

    Use the same procedure as for the LH side.

  26. REMOVE NO. 2 FRONT BUMPER REINFORCEMENT
    1. Remove the 2 nuts and No. 2 front bumper reinforcement.
      GTY763718Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  27. REMOVE FRONT BUMPER BRACKET LH
    1. Remove the 4 bolts and front bumper bracket LH.
      GTY763725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  28. REMOVE FRONT BUMPER BRACKET RH

    HINT:

    Use the same procedure as for the LH side.

  29. REMOVE NO. 1 RADIATOR AIR GUIDE LH

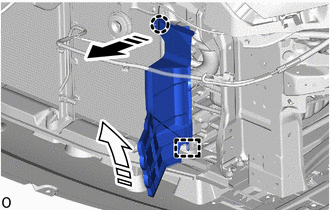

    1. Disengage the claw and guide to remove the No. 1 radiator air guide LH as shown in the illustration.
      GTY760746Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
  30. REMOVE NO. 1 RADIATOR AIR GUIDE RH

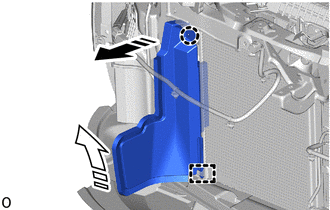

    1. Disengage the claw and guide to remove the No. 1 radiator air guide RH as shown in the illustration.
      GTY762090Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Remove in this Direction (1)
      Remove in this Direction (2)
