Components [12/2021 - ]
| *1 | FRONT BUMPER ASSEMBLY | *2 | FRONT FENDER MOULDING SUB-ASSEMBLY LH |
| *3 | FRONT FENDER MOULDING SUB-ASSEMBLY RH | *4 | RADIATOR COVER |
| *A | w/ Wire Harness | *B | w/ Fog Light |
| *1 | FOG LIGHT ASSEMBLY LH | *2 | FOG LIGHT ASSEMBLY RH |
| *3 | FOG LIGHT COVER LH | *4 | FOG LIGHT COVER RH |
| *5 | FRONT BUMPER HOLE COVER LH | *6 | FRONT BUMPER HOLE COVER RH |
| *7 | RADIATOR GRILLE | *8 | NO. 5 ENGINE ROOM WIRE |
| *1 | FRONT BUMPER EXTENSION MOUNTING BRACKET | *2 | FRONT BUMPER HOLE COVER |
| *3 | FRONT BUMPER SIDE MOUNTING BRACKET LH | *4 | FRONT BUMPER SIDE MOUNTING BRACKET RH |
| *5 | FRONT SPOILER COVER LH | *6 | FRONT SPOILER COVER RH |
| *7 | FRONT FENDER LINER RETAINER | *8 | OUTSIDE MOULDING RETAINER |

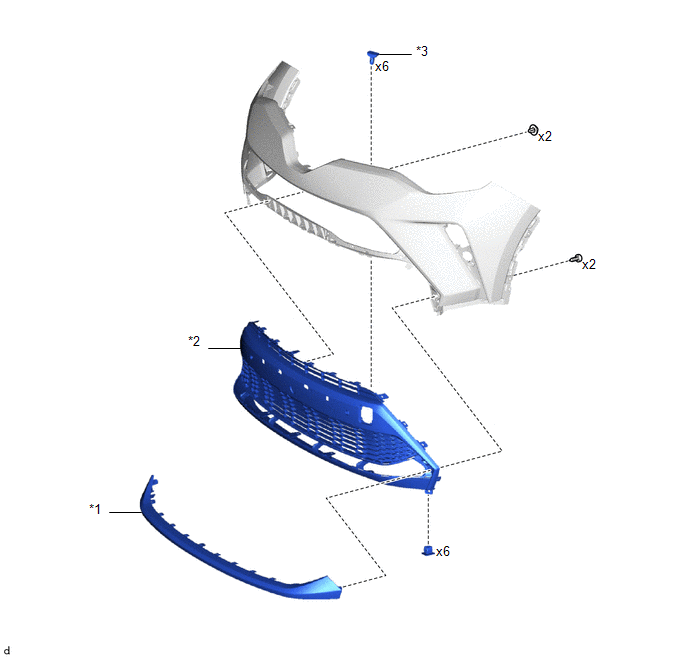

| *1 | FRONT BUMPER EXTENSION | *2 | FRONT BUMPER LOWER COVER |
| *3 | OUTSIDE MOULDING RETAINER | - | - |

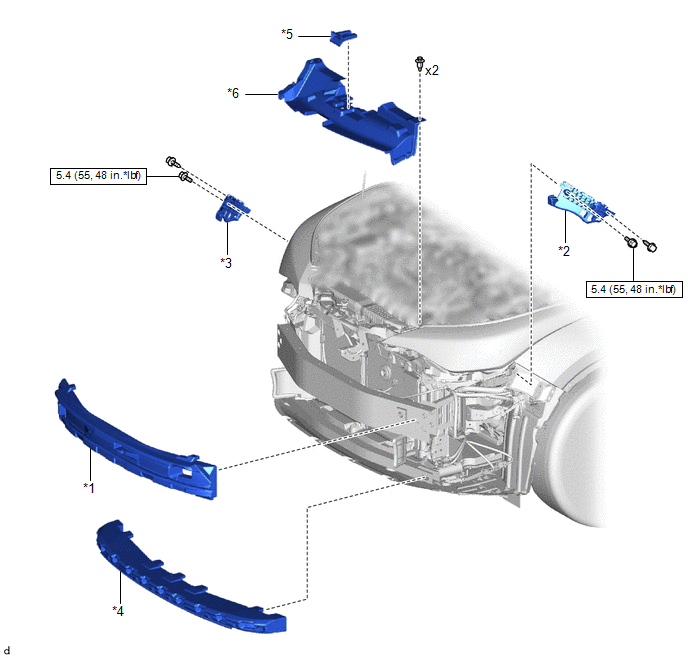

| Callout | Description | Callout | Description |
| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER SIDE RETAINER LH |
| *3 | FRONT BUMPER SIDE RETAINER RH | *4 | LOWER FRONT BUMPER ABSORBER |
| *5 | NO. 1 RADIATOR GRILLE RETAINER | *6 | NO. 1 RADIATOR TO SUPPORT SEAL |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

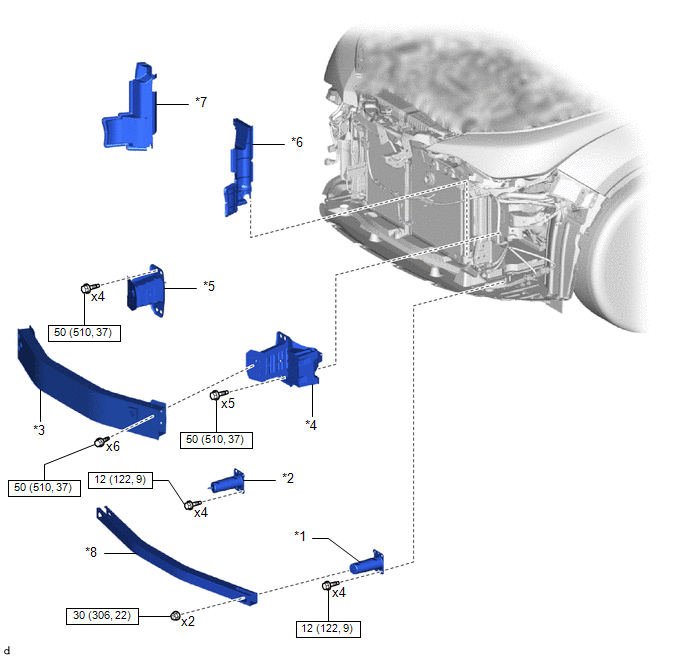

| Callout | Description | Callout | Description |
| *1 | FRONT BUMPER BRACKET LH | *2 | FRONT BUMPER BRACKET RH |
| *3 | FRONT BUMPER REINFORCEMENT | *4 | FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH |
| *5 | FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH | *6 | NO. 1 RADIATOR AIR GUIDE LH |
| *7 | NO. 1 RADIATOR AIR GUIDE RH | *8 | NO. 2 FRONT BUMPER REINFORCEMENT |
| N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
