Components [10/2017 - 12/2017]

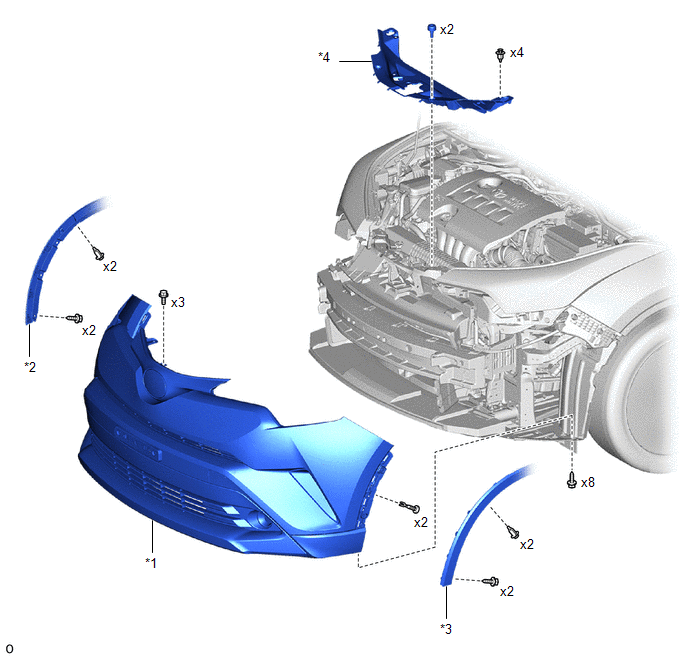

Fig 1: Front Bumper Replacement Components [10/2017 - 12/2017] (1 Of 8)
GTY742039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*1 FRONT BUMPER ASSEMBLY *2 FRONT FENDER MOULDING SUB-ASSEMBLY LH
*3 FRONT FENDER MOULDING SUB-ASSEMBLY RH *4 RADIATOR COVER
Fig 2: Front Bumper Replacement Components [10/2017 - 12/2017] (2 Of 8)
GTY743584Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for USA and Canada - -
*1 FOG LIGHT COVER LH *2 FOG LIGHT COVER RH
*3 FRONT BUMPER EXTENSION LH *4 FRONT BUMPER EXTENSION MOUNTING BRACKET
*5 FRONT BUMPER EXTENSION RH *6 FRONT BUMPER HOLE COVER
*7 FRONT BUMPER SIDE MOUNTING BRACKET LH *8 FRONT BUMPER SIDE MOUNTING BRACKET RH
*9 FRONT FENDER LINER RETAINER *10 RADIATOR GRILLE
Fig 3: Front Bumper Replacement Components [10/2017 - 12/2017] (3 Of 8)
GTY744507Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for USA and Canada - -
*1 FRONT BUMPER LOWER COVER *2 INNER RADIATOR GRILLE
*3 FRONT BUMPER COVER *4 GROMMET
*5 OUTSIDE MOULDING RETAINER - -

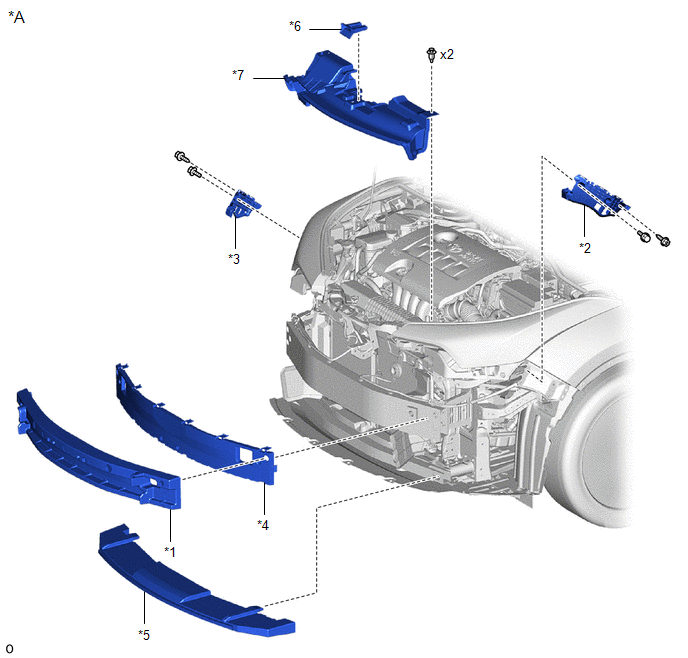

Fig 4: Front Bumper Replacement Components [10/2017 - 12/2017] (4 Of 8)
GTY745885Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A for USA and Canada - -
*1 FRONT BUMPER ENERGY ABSORBER *2 FRONT BUMPER SIDE RETAINER LH
*3 FRONT BUMPER SIDE RETAINER RH *4 FRONT ENERGY ABSORBER MOUNTING REINFORCEMENT
*5 LOWER FRONT BUMPER ABSORBER *6 NO. 1 RADIATOR GRILLE RETAINER
*7 NO. 1 RADIATOR TO SUPPORT SEAL - -
Fig 5: Front Bumper Replacement Components With Torque Specifications [10/2017 - 12/2017] (5 Of 8)
GTY745314Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A for USA and Canada - -
*1 FRONT BUMPER BRACKET LH *2 FRONT BUMPER BRACKET RH
*3 FRONT BUMPER REINFORCEMENT *4 FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH
*5 FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH *6 NO. 1 RADIATOR AIR GUIDE LH
*7 NO. 1 RADIATOR AIR GUIDE RH *8 NO. 2 FRONT BUMPER REINFORCEMENT
N*m (kgf*cm, ft.*lbf): Specified torque - -

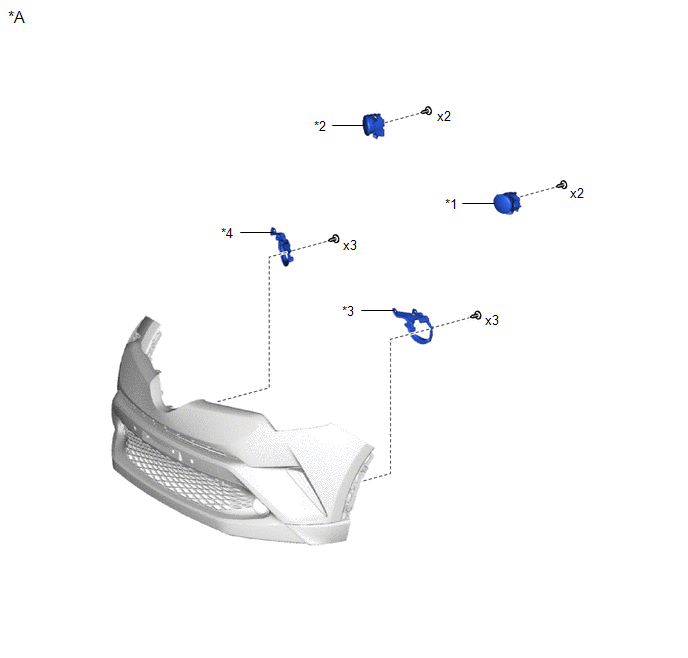

Fig 6: Front Bumper Replacement Components [10/2017 - 12/2017] (6 Of 8)
GTY750472Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A except USA and Canada - -
*1 FOG LIGHT ASSEMBLY LH *2 FOG LIGHT ASSEMBLY RH
*3 FOG LIGHT COVER LH *4 FOG LIGHT COVER RH
Fig 7: Front Bumper Replacement Components [10/2017 - 12/2017] (7 Of 8)
GTY752405Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
*A except USA and Canada - -
*1 FRONT BUMPER EXTENSION LH *2 FRONT BUMPER EXTENSION MOUNTING BRACKET
*3 FRONT BUMPER EXTENSION RH *4 FRONT BUMPER HOLE COVER
*5 FRONT BUMPER LOWER COVER *6 FRONT BUMPER SIDE MOUNTING BRACKET LH
*7 FRONT BUMPER SIDE MOUNTING BRACKET RH *8 FRONT FENDER LINER RETAINER
*9 INNER RADIATOR GRILLE *10 NO. 1 RADIATOR GRILLE MOULDING
*11 FRONT BUMPER COVER *12 OUTSIDE MOULDING RETAINER
*13 GROMMET - -
Fig 8: Front Bumper Replacement Components With Torque Specifications [10/2017 - 12/2017] (8 Of 8)
GTY763128Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Callout Description Callout Description
*A except USA and Canada - -
*1 FRONT BUMPER BRACKET LH *2 FRONT BUMPER BRACKET RH
*3 FRONT BUMPER ENERGY ABSORBER *4 FRONT BUMPER REINFORCEMENT
*5 FRONT BUMPER SIDE RETAINER LH *6 FRONT BUMPER SIDE RETAINER RH
*7 FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY LH *8 FRONT SIDE MEMBER BRACKET SUB-ASSEMBLY RH
*9 LOWER FRONT BUMPER ABSORBER *10 NO. 1 RADIATOR AIR GUIDE LH
*11 NO. 1 RADIATOR AIR GUIDE RH *12 NO. 1 RADIATOR GRILLE RETAINER
*13 NO. 1 RADIATOR TO SUPPORT SEAL *14 NO. 2 FRONT BUMPER REINFORCEMENT
N*m (kgf*cm, ft.*lbf): Specified torque - -
