Seat Heater for Front Right Seat does not Operate [02/2017 - 05/2018]: Wiring Diagram

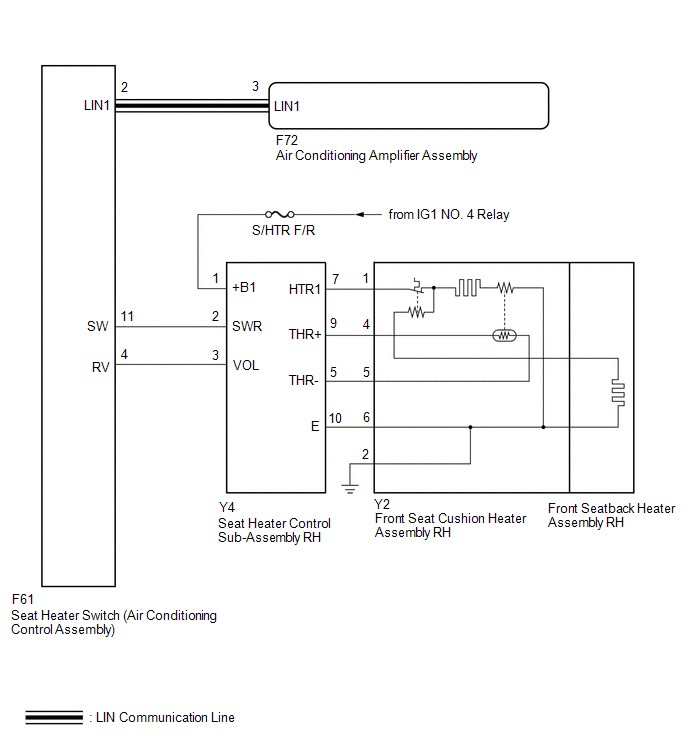

Fig 1: Seat Heater For Front Right Seat Circuit Diagram

GTY746005

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
