Seat Heater for Front Left Seat does not Operate [05/2018 - 09/2019]: Wiring Diagram

for TMC Made

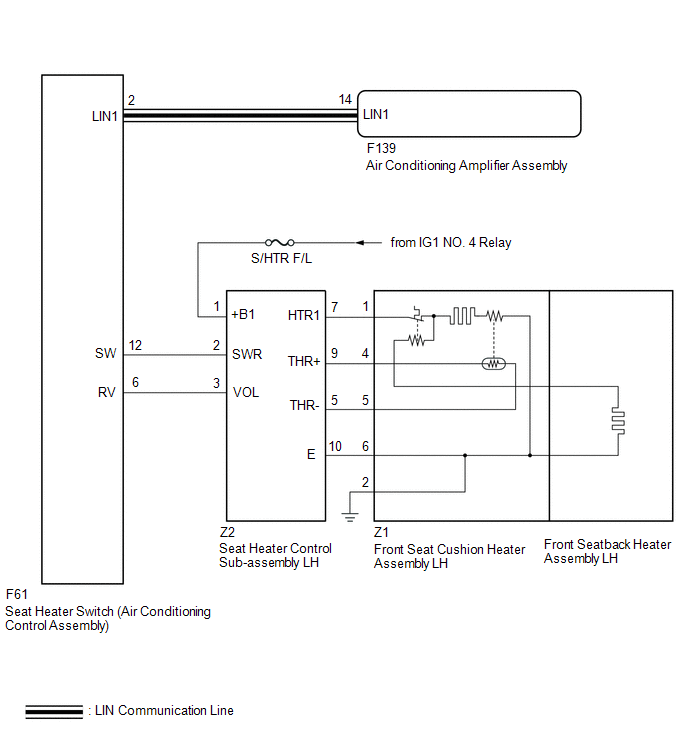

Fig 1: Seat Heater For Front Left Seat Circuit Diagram - For TMC Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
for TMMT Made

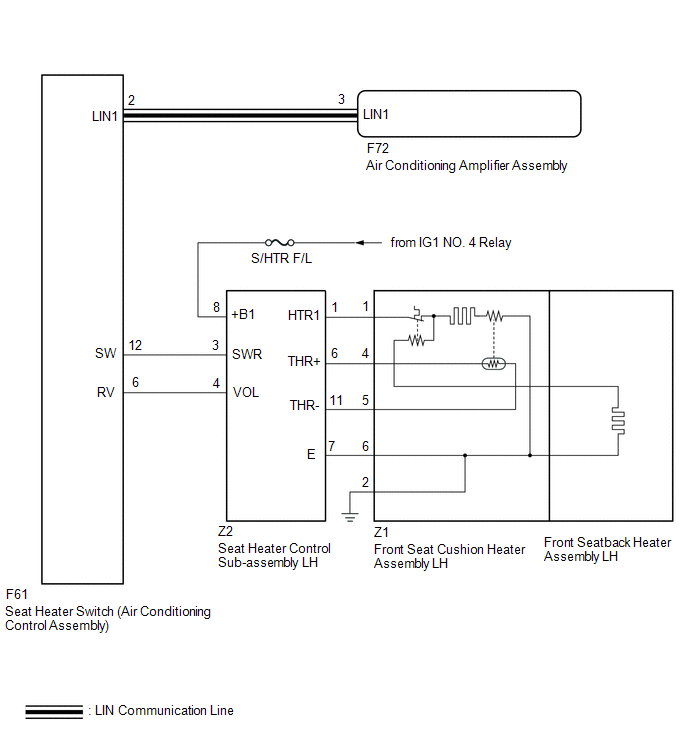

Fig 2: Seat Heater For Front Left Seat Circuit Diagram - For TMMT Made
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
