DTC B14B5: Lost Communication with Front Seat Temperature Adjustment Switch LIN [05/2018 - ]
>>
Wiring Diagram
DTC B14B5: Lost Communication with Front Seat Temperature Adjustment Switch LIN [05/2018 - ]: Wiring Diagram

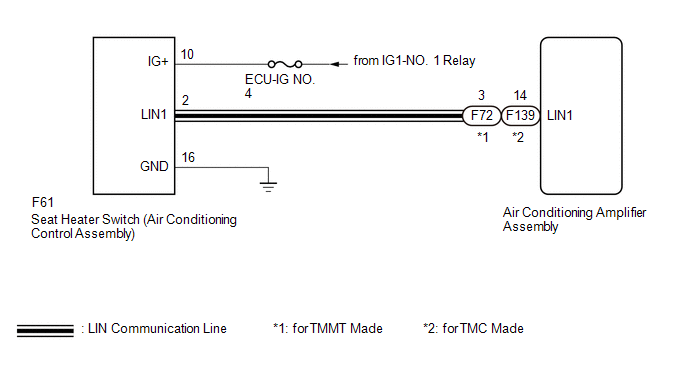

Fig 1: Lost Communication With Front Seat Temperature Adjustment Switch LIN Circuit Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
