Data List / Active Test [08/2020 - ]

  1. DATA LIST
    NOTE:

    In the chart below, the values listed under "Normal Condition" are reference values. Do not depend solely on these reference values when deciding whether a part is faulty or not.

    HINT:

    Using the Techstream to read the Data List allows the values or states of switches, sensors, actuators and other items to be read without removing any parts. This non-intrusive inspection can be very useful because intermittent conditions or signals may be discovered before parts or wiring is disturbed. Reading the Data List information early in troubleshooting is one way to save diagnostic time.

    1. Warm up the engine.
    2. Turn the ignition switch off.
    3. Connect the Techstream to the DLC3.
    4. Turn the ignition switch ON.
    5. Turn the Techstream on.
    6. Enter the following menus:
      1. for Combination Meter: Body Electrical / Combination Meter / Data List.
      2. for ABS/VSC/TRAC/EPB: Chassis / ABS/VSC/TRAC/EPB / Data List.
      3. for Engine: Powertrain / Engine / Data List.
    7. Read the Data List according to the display on the Techstream.
      1. Combination Meter

        Body Electrical > Combination Meter > Data List

        Tester Display Measurement Item Range Normal Condition Diagnostic Note
        P-Seatbelt Buckle SW Front passenger seat belt buckle switch OFF or ON OFF: Front passenger seat belt fastened
        ON: Front passenger seat belt unfastened        		 -
        Vehicle Speed Meter Vehicle speed Min.: 0 km/h (0 mph), Max.: 255 km/h (158 mph) Almost the same as actual vehicle speed -
        Engine Rpm Engine speed Min.: 0 rpm, Max.:12750 rpm Almost the same as actual tachometer -
        Engine/FC Coolant Temperature Engine/FC coolant temperature Min.: 0°C (0°F), Max.: 127.5°C(261.5°F) 75 to 100°C (167 to 212°F): After warming up engine -
        Oil Level SW Engine oil level sensor OFF or ON OFF: Oil level not low
        ON: Oil level low        		 *1
        Multi Display Select Switch Steering pad switch (DISP) OFF or ON OFF: Steering pad switch (DISP) released
        ON: Steering pad switch (DISP) pushed        		 -
        +B Voltage Value Battery voltage Min.: 0 V, Max.:25.5 V 11 to 14 V -
        Fuel Input Fuel input Min.: 0 L, Max.:127.5 L
        • Fuel receiver gauge indicates

          F: 45.0 L

        • Fuel receiver gauge indicates

          3/4: 35.4 L

        • Fuel receiver gauge indicates

          1/2: 25.0 L

        • Fuel receiver gauge indicates

          1/4: 14.6 L

        • Fuel receiver gauge indicates

          E: 5.0 L

        		 Unit: Liter
        Ambient Temperature Outside temperature Min.: -40°C (-40°F), Max.: 87.5°C (189.5°F) Almost the same as actual outside temperature The temperature displayed on the multi-information display is -40 to 50°C (-40 to 122°F)
        Rheostat value Light control rheostat switch input Min.: 0%, Max.: 100% Increases from 0 to 100 as light control rheostat switch turned from left to right -
        HV/EV System Indicator HV/EV system indicator value Min.: -101%, Max.: 511% -101 to 511% *1
        Multi Switch (Up) Steering pad switch(Up) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Down) Steering pad switch(Down) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Menu) Steering pad switch(Menu) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Enter) Steering pad switch(Enter) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Right) Steering pad switch(Right) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Multi Switch (Left) Steering pad switch(Left) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        2nd-Row Seatbelt Buckle (R) Buckle switch (rear RH side) OFF or ON OFF: Tongue plate (for Rear RH side) not inserted
        ON: Tongue plate (for Rear RH side) inserted        		 *2
        2nd-Row Seatbelt Buckle (L) Buckle switch (rear RH side) OFF or ON OFF: Tongue plate (for Rear LH side) not inserted
        ON: Tongue plate (for Rear LH side) inserted        		 *2
        2nd-Row Seatbelt Buckle (C) Buckle switch (rear RH side) OFF or ON OFF: Tongue plate (for Rear center) not inserted
        ON: Tongue plate (for Rear center) inserted        		 *2
        Oil Pressure Switch Oil pressure switch OFF or ON OFF: Engine started
        ON: Engine not started        		 -
        Turn Signal Switch (Right) Oil pressure switch OFF or ON OFF: RH turn signal switch off
        ON: RH turn signal switch on        		 -
        Turn Signal Switch (Left) LH turn signal switch OFF or ON OFF: LH turn signal switch off
        ON: LH turn signal switch on        		 -
        Hazard Flasher Switch Hazard warning signal switch OFF or ON OFF: Hazard warning signal switch off
        ON: Hazard warning signal switch on        		 -
        Passenger Occupant Detection Switch Occupant detection sensor OFF or ON OFF: Front passenger seat not occupied
        ON: Front passenger seat occupied        		 *3
        Turn Switch Signal (Full Turn) Turn signal switch status OFF or ON OFF: Turn signal switch off
        ON: Turn signal switch on (Full Turn)        		 -
        Multi Switch (Back) Steering pad switch(Back) OFF or ON OFF: Switch released
        ON: Switch pushed        		 -
        Key Remind Sound Condition of the key reminder sound adjustment Normal, Slow, Fast Customized value displayed *4
        Driver Side Seatbelt Warning Buzzer Setting of the driver seatbelt warning buzzer OFF or ON OFF: Seatbelt warning buzzer does not sound at vehicle speed of 20 km/h (12 mph) or more when driver seat belt unfastened
        ON: Seatbelt warning buzzer sounds at vehicle speed of 20 km/h (12 mph) or more when driver seat belt unfastened        		 Displays customize setting of Driver Side Seatbelt Warning Buzzer
        P-Seatbelt Warning Buzzer Setting of the front passenger seatbelt warning buzzer OFF or ON OFF: Seatbelt warning buzzer does not sound at vehicle speed of 20 km/h (12 mph) or more when front passenger seatbelt unfastened
        ON: Seatbelt warning buzzer sounds at vehicle speed of 20 km/h (12 mph) or more when front passenger seatbelt unfastened        		 Displays customize setting of Front Passenger Side Seatbelt Warning Buzzer
        Rear Seatbelt Warning Buzzer Rear seat belt warning buzzer OFF or ON Customized value displayed *2
        ECO Drive Indicator Zone Setting of the ECO drive indicator zone OFF or ON OFF: Active
        ON: Non Active        		 -
        ECO Drive Indicator Light Condition of the eco drive indicator light OFF or ON Customized value displayed -
        ODO Display Time After IG OFF Setting Setting of the ODO display time after the ignition switch is turned off 30s, 60s, 600s, OFF Displays customize setting of ODO display time after the ignition switch is turned off -
        Lane Change Flashing Times Setting Setting of the lane change flashing times OFF, 3, 4, 5, 6, 7 Customized value displayed -
        TPMS System Existence of function With or Without With: w/ Tire pressure warning system
        Without: w/o Tire pressure warning system        		 -
        LDA System Existence of function With or Without With: w/ Lane Control System
        Without: w/o Lane Control System        		 -
        VSC System Existence of function With or Without With: w/ Vehicle stability control system
        Without: w/o Vehicle stability control system        		 -
        PCS System Existence of function With or Without With: w/ Pre-collision System
        Without: w/o Pre-collision System        		 -
        ICS System Existence of function With or Without With: w/ Intelligent clearance sonar system
        Without: w/o Intelligent clearance sonar system        		 -
        Radar Cruise System Existence of function With or Without With: w/ Dynamic Radar Cruise Control System
        Without: w/o Dynamic Radar Cruise Control System        		 -
        Flasher Sound Tone Setting Condition of the flasher sound tone adjustment Tone 1, Tone 2, Tone 3 Customized value displayed -
        Intuitive P/A System Existence of function With or Without With: w/ Intuitive parking assist System
        Without: w/o Intuitive parking assist System        		 -
        Road Sign Assist System Existence of function With or Without With: w/ Road sign assist system
        Without: w/o Road sign assist system        		 -
        Number of Trouble Code The number of the DTC currently stored Min.: 0, Max.: 255 0 -
        1. *1: Although the item is displayed on the Techstream, it is not applicable to this vehicle.
        2. *2: w/ Rear Seat Belt Warning
        3. *3: w/o Occupant Classification System
        4. *4: w/o Smart Key System
      2. ABS/VSC/TRAC/EPB

        Chassis > ABS/VSC/TRAC/EPB > Data List

        Tester Display Measurement Item Range Normal Condition Diagnostic Note
        Vehicle Speed Maximum wheel speed sensor reading Min.: 0 km/h (0 mph), Max.: 326 km/h (202 mph) Vehicle stopped: 0 km/h (0 mph) When driving at constant speed: No large fluctuations
      3. Engine and ECT

        Powertrain > Engine and ECT > Data List

        Tester Display Measurement Item Range Normal Condition Diagnostic Note
        Engine Speed Engine speed Min.: 0 rpm, Max.: 16383 rpm 710 to 810 rpm: Idling with warm engine When the crankshaft position sensor is malfunctioning, "Engine Speed" is approximately 0 rpm or varies greatly from the actual engine speed.
        Coolant Temp Engine coolant temperature Min.: -40°C (-40°F), Max.: 140°C (284°F) 75 to 100°C (167 to 212°F): After warming up engine This is the engine coolant temperature.
        HINT:
        • After warming up the engine, the engine coolant temperature is 75 to 100°C (167 to 212°F).
        • After a long soak, the engine coolant temperature, intake air temperature and ambient temperature are approximately equal.
        • If the value is -40°C (-40°F), or 135°C (275°F), the sensor circuit is open or shorted.
        • Check if the engine overheats when the value indicates 135°C (275°F).
  2. ACTIVE TEST

    HINT:

    Using the Techstream to perform Active Tests allows relays, VSVs, actuators and other items to be operated without removing any parts. This non-intrusive functional inspection can be very useful because intermittent operation may be discovered before parts or wiring is disturbed. Performing Active Tests early in troubleshooting is one way to save diagnostic time. Data List information can be displayed while performing Active Tests.

    1. Connect the Techstream to the DLC3.
    2. Turn the ignition switch ON.
    3. Turn the Techstream on.
    4. Enter the following menus: Body Electrical / Combination Meter / Active Test.
    5. Perform the Active Test according the display on the Techstream.

      Body Electrical > Combination Meter > Active Test

      Tester Display Measurement Item Control Range Diagnostic Note
      Speed Meter Operation Speedometer OFF, 0, 40, 80, 120, 160, 200, 240, 280 There is a deviation in the values displayed on the speedometer (Control range → Speedometer display)
      (1)for Gauge speedometer*1 Reference km/h:
      • 40 → 41.7 to 46.2
      • 80 → 83.4 to 88.4
      • 120 → 125.1 to 130.6
      • 160 → 166.2 to 173.2
      • 200 → 207.7 to 215.7

      (2)for Gauge speedometer*2 Reference km/h:
      • 40 → 38.7 to 43.2
      • 80 → 79.3 to 84.3
      • 120 → 120.3 to 125.3
      • 200 → 202.1 to 207.1

      (3)for Gauge speedometer*3 Reference mph:
      • 40 → 39.5 to 42.3
      • 80 → 80.2 to 83.4
      • 120 → 121.2 to 124.4
      TachoMeter Operation Tachometer OFF, 0, 1000, 2000, 3000, 4000, 5000, 6000, 7000 -
      Fuel Meter Operation Fuel receiver gauge OFF, Sender E, Empty, Warning, 1/4, 1/2, 3/4, Full, Sender F See Fuel Meter Operation
      A/T Indicator Operation 1 Shift indicator OFF, L, 2, 3(M), 4(M), D, N, R, P -
      A/T Indicator Operation 2 Shift indicator Shift indicator OFF, 8, 5, 6, 7, M -
      A/T Indicator Operation 3 Shift indicator Shift indicator OFF, D, SIL (Up), SIL (Down) -
      Indicat. Lamp Airbag SRS warning light OFF or ON -
      Driver Side Seat Belt Driver or front passenger seat belt warning light OFF or ON -
      Indicat. Lamp ABS ABS warning light OFF or ON -
      Indicat. Lamp Slip Slip indicator light OFF or ON -
      Indicat. Lamp Beam High beam indicator light OFF or ON -
      Indicat. Lamp Head Head indicator light OFF or ON *4
      Indicat. Lamp Tail Tail indicator light OFF or ON *5
      Indicat. Lamp Fr FOG Front fog indicator light OFF or ON *6
      Indicat. Pre-Collision PCS warning light OFF or ON *7
      Indicat. Lamp Fuel Fuel level warning light OFF or ON -
      Indicat. Tire Pressure Warning System Tire pressure warning light OFF or ON -
      Indicat. Lamp ECB Brake warning light / yellow (minor malfunction) OFF or ON -
      Indicat. Lamp Brake Brake warning light OFF or ON -
      Indicat. EPS EPS warning light OFF or ON -
      Indicat. Park Parking brake warning light OFF or ON -
      Indicat. VSC OFF VSC OFF indicator light OFF or ON -
      Automatic High Beam Indicator Automatic high beam indicator light OFF or ON *7
      PPS Indicator EPS warning light OFF or ON -
      Turn Signal (Left) Indicator LH turn indicator light OFF or ON -
      Turn Signal (Right) Indicator RH turn indicator light OFF or ON -
      Check Engine Indicator MIL (Check engine warning light) OFF or ON -
      BSM OFF Indicator BSM OFF indicator light OFF or ON *8
      RCTA OFF Indicator RCTA OFF Indicator light OFF or ON *8
      Water Temperature Meter Operation Engine coolant temperature receiver gauge OFF, LOW, NORMAL, HIGH See Water Temperature Meter Operation
      Meter Display 1 Multi-information display OFF, All -
      1. *1: w/o Occupant Classification System
      2. *2: w/ Occupant Classification System and w/o Daytime Running Light OFF function
      3. *3: w/ Occupant Classification System and w/ Daytime Running Light OFF function
      4. *4: w/ HEAD Indicator
      5. *5: w/ TAIL Indicator
      6. *6: w/ Front Fog Light
      7. *7: w/ Toyota Safety Sense
      8. *8: w/ Blind Spot Monitor System
      9. *9: Although the item is displayed on the Techstream, it is not applicable to this vehicle.

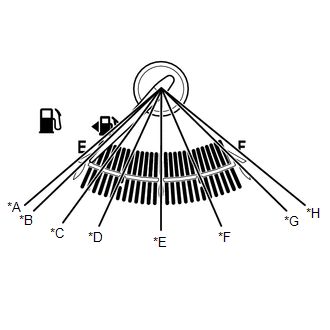

      1. Fuel meter operation. (w/ Occupant Classification System)
        GTY750953Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Sender E
        *B Empty
        *C Warning
        *D 1/4
        *E 1/2
        *F 3/4
        *G Full
        *H Sender F

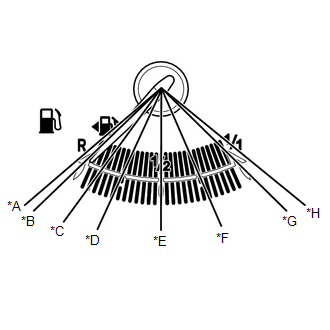

      2. Fuel meter operation. (w/o Occupant Classification System)
        GTY770951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A Sender E
        *B Empty
        *C Warning
        *D 1/4
        *E 1/2
        *F 3/4
        *G Full
        *H Sender F
      3. Water temperature meter operation.
        GTY766573Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
        *A LOW
        *B NORMAL
        *C HIGH
