Steering Pad Switch Circuit [02/2017 - ]: Wiring Diagram

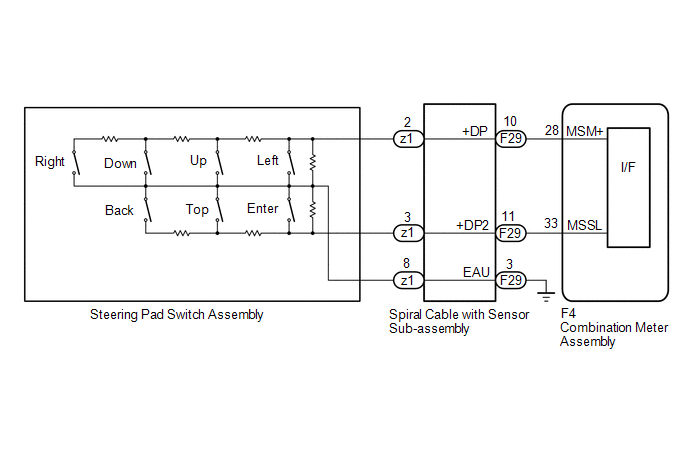

Fig 1: Steering Pad Switch Circuit Diagram

GTY743476

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
