Speed Signal Circuit [09/2019 - 12/2021]: Wiring Diagram

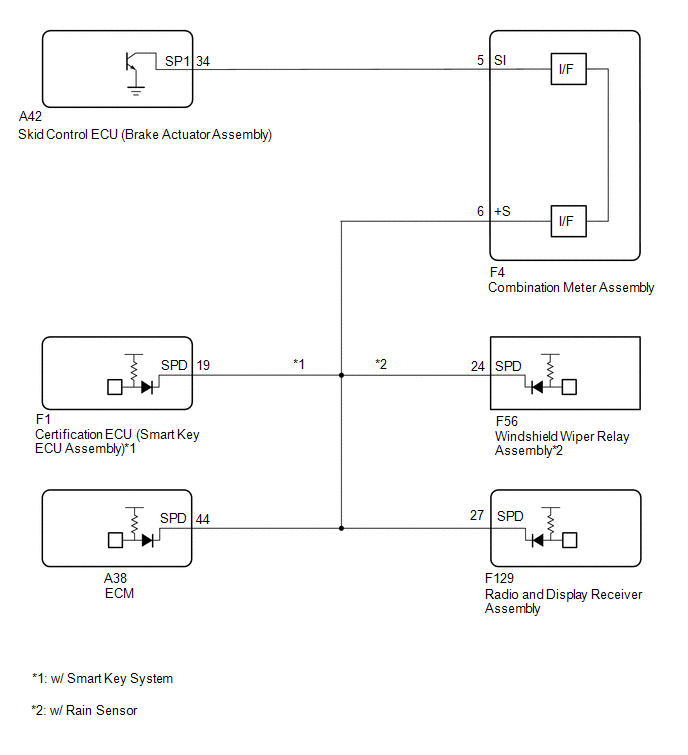

Fig 1: Speed Signal Circuit Diagram

GTY916490

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
