Turn Signal Switch Circuit [09/2019 - ]: Wiring Diagram

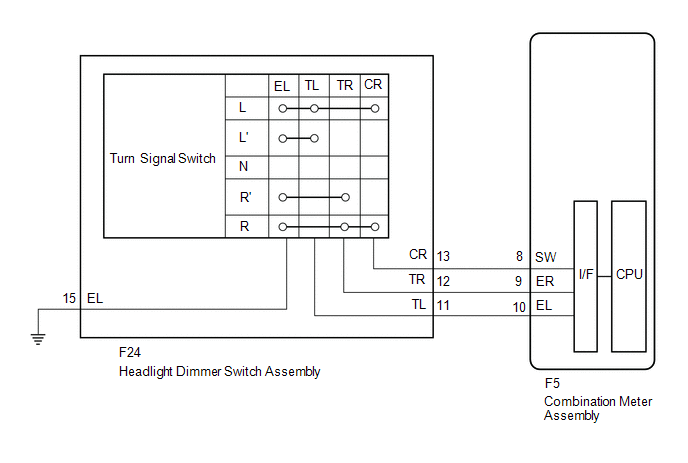

Fig 1: Turn Signal Switch Circuit Diagram

GTY748645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
